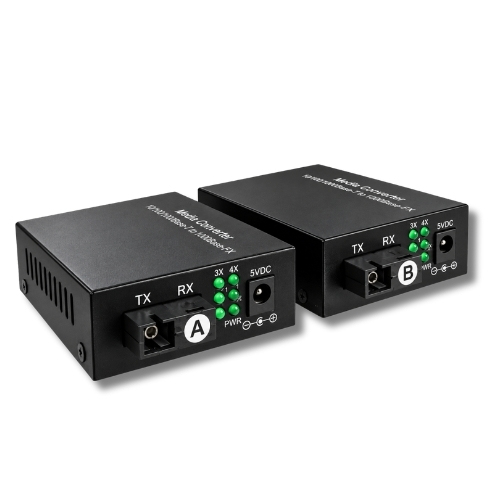

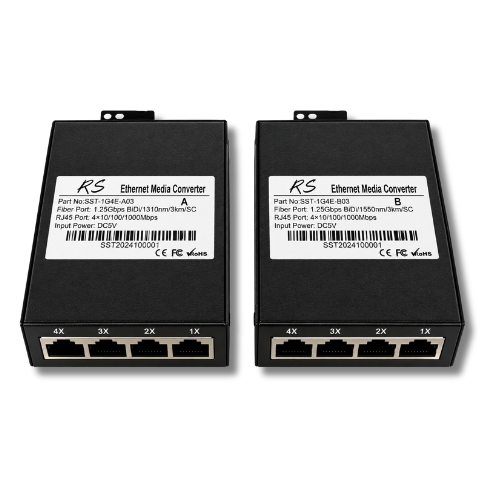

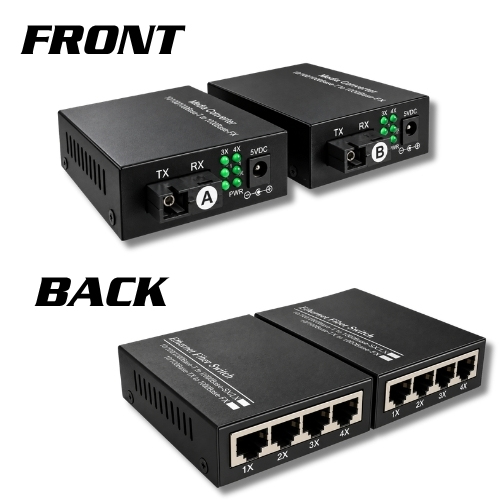

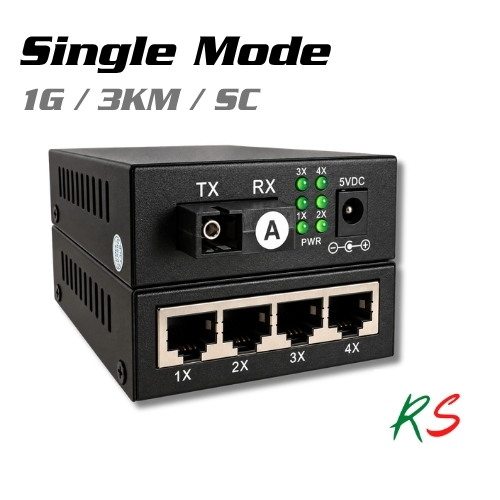

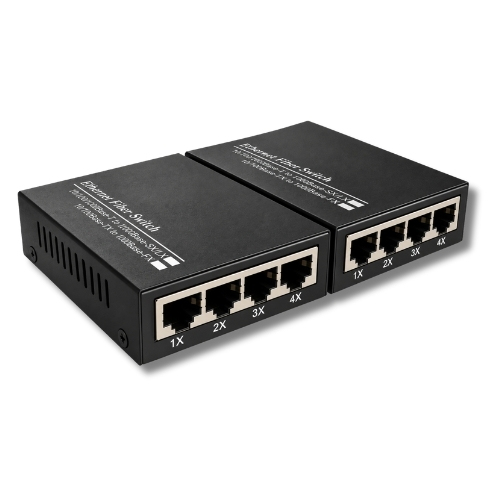

The RS SST-1G4E-AB03 Gigabit Single-Mode Media Converter Set provides long-distance Gigabit Ethernet transmission over a single-mode fiber connection while offering 4 × Gigabit RJ45 ports at each end.
The package consists of a matched A + B (TX/RX) pair using different optical wavelengths for BiDi/WDM transmission over a single fiber strand. One unit operates at 1330 nm and the other at 1550 nm, communicating through SC Simplex fiber ports over distances of up to 3 km.
With 4 × RJ45 Gigabit Ethernet ports on each converter, the SST-1G4E-AB03 is particularly useful for CCTV systems, remote network cabinets, building-to-building links and installations where multiple Ethernet devices need to be connected at the remote location without adding a separate network switch.
Technical Details
- MPN: SST-1G4E-AB03
- Product Type: Gigabit Single-Mode Media Converter Set
- Configuration: A/B Pair
- Fiber Data Rate: 1.25 Gbps
- Fiber Transmission: BiDi
- Wavelengths: 1310 nm / 1550 nm
- Maximum Transmission Distance: 3 km
- Fiber Connector: SC Simplex
- Fiber Type: Single-Mode
- RJ45 Data Rate: 10 / 100 / 1000 Mbps
- Ethernet Connector: RJ45 * 4 for both ( RX , TX )
- Ethernet Mode: Full Duplex / Half Duplex
- Standards & Protocols: IEEE 802.3, 100/1000BASE-TX/FX
- Input Power: 5 V
- Operating Temperature: 0°C to 60°C
- Relative Humidity: 5–90%
- Application Environment: Indoor
- Package Contents: 1 × A/B Media Converter Rx,1 × A/B Media Converter Tx, 2 × 5 V Power Adapters, 1 × User Manual
| Weight | 0.7 kg |
|---|---|
| Manufacturer | RS |
| Fiber Mode | Single Mode |
| Fiber Count | 1 |
| Fiber Cable Connector | SC/UPC |
