TELEVES 209905 Keystone RJ45 UTP Cat.6 180° Tool-Free
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

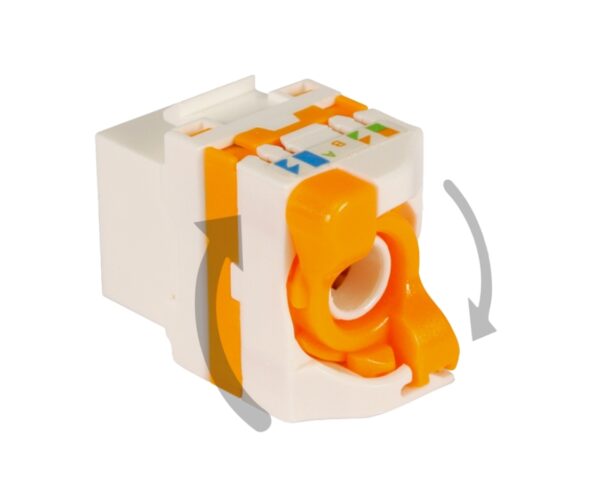

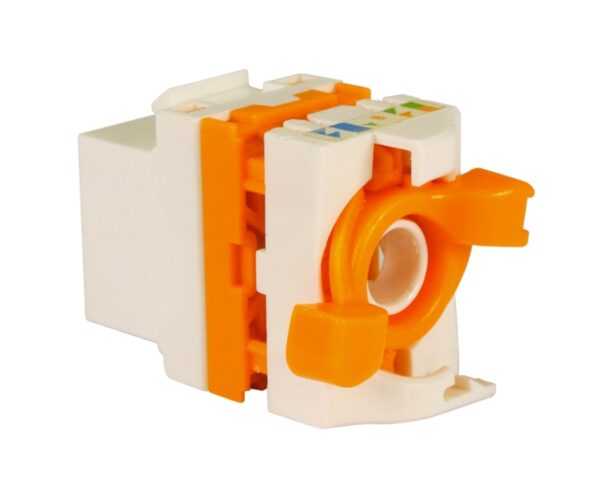

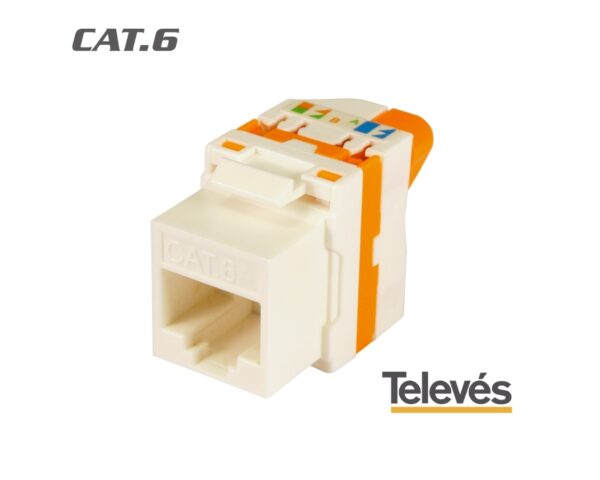

The TELEVES 209905 Keystone Jack RJ45 UTP Cat.6 Female 180° Tool-Free white, is a RJ45 female connector Wing nut type UTP Cat 6 for data cables, reusable and easy to connect since no specific tools are required. The connector allows self-crimping by rotating the wing nut built into the rear part, with the fingers. It is compatible with PoE/PoE+/PoE++ (Power over Ethernet) technology, allowing the cable to power network devices. It is reusable up to 750 times (estimated), so it can be removed and reinstalled without deteriorating or losing functionality, designed for multiple-connection application. without losses. It is optimal for Cat 6 UTP, Cat 5e UTP and Cat 5 UTP and features a front side (180°) cable input, with labels with connection diagrams (A or B) on the connector, which has 50 microns gold-plated pins.
Technical features:
– Specification CAT 6, UTP, RJ45 female, Tool-Free installation
– PoE and PoE Plus: Yes
– Shielding: UTP
– Rated voltage: 125 V, Rated current: 1.5 A (max.)
– Cable output: 180°
– Contact resistance: 20 mΩ max.
– Insulation resistance: 1000 MΩ min.
– Resistance voltage: 750 V RMS, 60 Hz, 1 min
– AWG 23 … 26 for 5Cat 6 UTP, Cat 5e UTP and Cat 5 UT
– Housing material: Polycarbonate
– Color: White
– Dimensions: 17 (D) x 22 (W) x 31 (H) mm

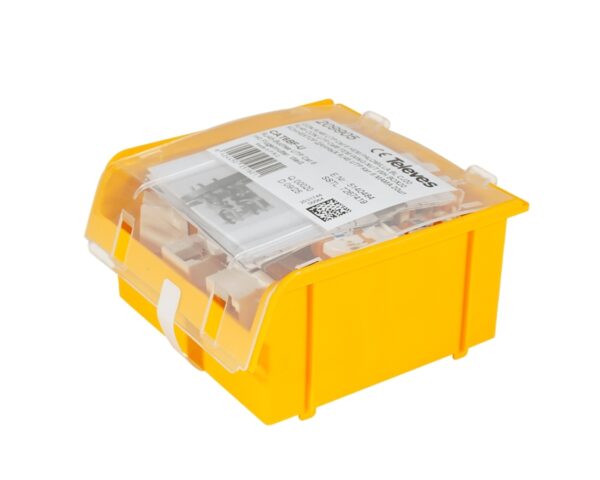

Packaging:
– Per 20 pieces
| Manufacturer | TELEVES |
|---|---|
| LAN Category | Cat6 |
| LAN Type | UTP |
