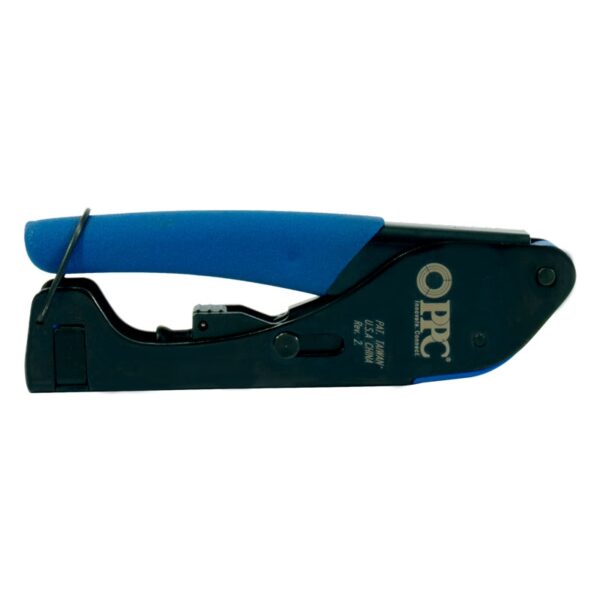

Televes 216301 COMPRESSION TOOL FOR F & IEC CONNECTORS is a tool destined to assembly F and IEC compression connectors over different coaxial cables. According to the connector that will be used (reference), you must adjust the rotatory head existing on the tools body, adapting it to the connector type. To ease the process, one of the positions of the rotatory head is identified by a yellow indicator.

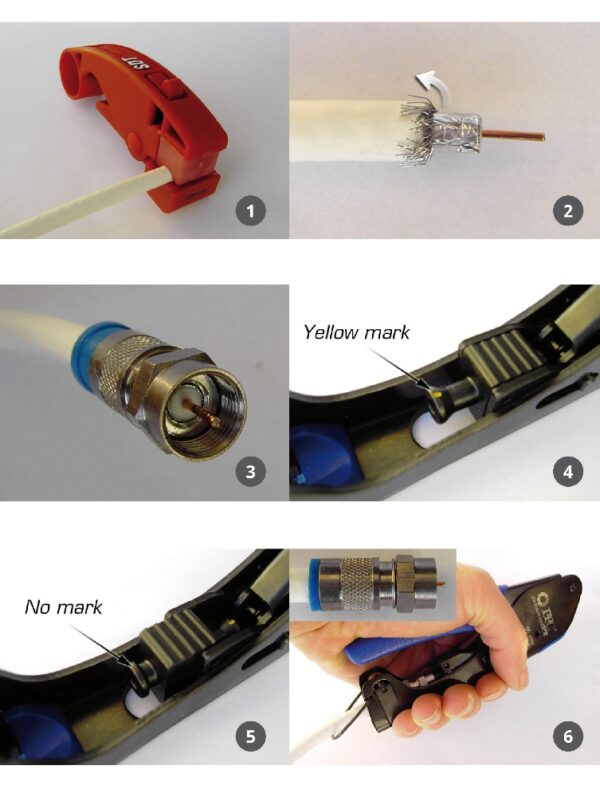

Process easy to complete in 4 steps:
- Peel the cable and retire the braid backwards. (Recommended measures for 3802 and 4104 : A=8 mm, B= 8mm)
- Position the corresponding connector over the cable.
- Choose the head that fits best to the connector according to the BLACK/YELLOW plug specification above.
- Position the cable with the connector already inserted in the heads interior, close the compression tool and squeeze until the limit is reached
Technical features:
- Higher speed of use for the installer.
- Robust construction, with anti-slip grips and compact dimensions.
- Physic and electric connection warranty.
- Allows the support of tractions over the coaxial cable, without this being pulled off the connector.
- Avoids the usual spin of the coaxial cable in the screwing process of the connector, thanks to its independence between the head and the connectors body.
| Manufacturer | TELEVES |
|---|
