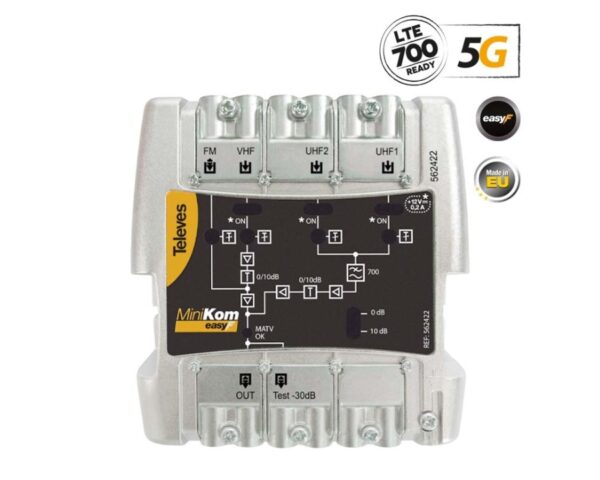

Televes 562422 MiniKom Βroadband Αmplifier 5G LTE 116dBuV FM/V/2xU
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
TELEVES 562422 is a multiband amplifier with cutoff filter for 5G interferences. It is for MATV systems and features separate amplification that guarantees the absence of intermodulation among inputs. Equipped with 4 inputs: FM-VHF-UHF-UHF. The UHF and VHF inputs have both selectable gain margins, with switched configurable gain (high/low), and high output level whereas the FM input has a single amplifying stage. Equipped with LTE700 filtering, an output LED signal indicator for immediate network failure detection and Test output (-30 dB). EasyF connection system, high-screening Zamak chassis and Switch-mode power supply ensuring low power consumption.
Technical Features:
– Inputs 4: UHF_1, UHF_2, FM, VHF
– LTE CUTOFF for 5G (UHF 49) interferences.
– ON/OFF DC pass switch on VHF and UHF inputs for pre-amplifier or Televes BOSS system powering. DC: mA 200/ max. 400, 12V.
– LED indicators to display the presence of output signal.
– Bandwidth 5G: MHZ UHF: 470 … 694, FM: 88 … 108, VHF: 174 …400.
– Outputs: 1 main and 1 TEST output: -30db
– Output level (DIN 45004B): dBμV [UHF 1 & 2] 116, [VHF] 114, [FM] 113.
– Gain, db, High/Low switch: UHF 1 & 2: 36/26, VHF 34/24, FM 15.
– Low/High gain switch for UHF and VHF.
– 0 to -20db individual attenuators
– Noise figure: dB VHF 4, FM 6, UHF1-UHF2: 10
– Power supply: 220 – 230 V / 50-60 Hz
– Power consumption: (without input powering) W/mA 4.6 / 55, (with input powering) W/mA 7.5 / 82
– Ground terminal connection
– Operating temperature: -5 … +45 C
– Protection index: IP20
– Easy installation design
– Dimensions: 103 x 103 x 50 mm.
| Manufacturer | TELEVES |
|---|
