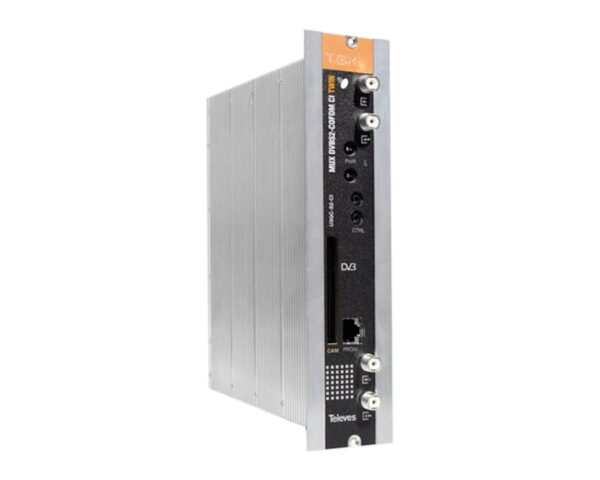

Televes 564301 T.0X DVB-S2 MUX 3:2 CI to 2x COFDM

ENERGY EFFICIENCY, OPTIMUM PERFORMANCE AND THE MOST EFFICIENT SPECTRUM RANGE

The 564301 T.0X module receive signals from three transponders (two of them having the same band and polarity), and generate two muxes with content from any of these transponders.

If you use a CAM and card to decode services, it can be placed either at the output of any of the demodulators or in the multiplexed transport. It also has a SAFE DCY function to avoid CAM overflow in case new PIDs are found.

Product Highlights:

– TWIN output signal (two muxes) fully configurable.
– Combined LCN and SID edition in both muxes. It avoids retunning TVs when updating the channel line-up.
– DiSEqC.
– Configurable position of the CAM card.

Main Features:

– Remote monitoring and configuration via CDC.
– The installer can configure the output services as well as delete any specific PID from any of them.
– It provides information about the of useful rate of every input service and shows the output channel occupancy.

Technical Features:

SAT Demodulator
– Input frequency MHz 950 – 2150
– Symbol rate Mbaud 2 – 45
– Frequency step MHz 1
– Input/Output connectors F female
– Input impedance ohm 75
– LNB Powering Vdc/KHz 13-17- OFF / 22KHz (ON-OFF)
– SAT selection (DiSEqC) A, B, C, D
– Through losses (typ.) dB < 1,5
– Modulation DVB-S2, QPSK, 8PSK, DVB-S, QPSK
– Internal FEC LDPC 9/10, 8/9, 5/6, 4/5, 3/4, 2/3, 3/5, 1/2
– External FEC Bose-Chaudhuri-Hocquenghem
– Roll-off factor % 20, 25, 35
– Input R.O.E. (min.) dB 10

COFDM Modulator
– Modulation format QPSK, 16QAM, 64QAM
– Guard interval 1/4, 1/8, 1/16, 1/32
– FEC 1/2, 2/3, 3/4, 5/6, 7/8
– Bandwidth MHz 7, 8
– Scrambling DVB ET300744
– Interleaving DVB ET300744
– Cell_id Selectable
– Output spectrum (selec.) Regular / Inverted

RF Output
– Output frequency (selec.) MHz 46 – 862
– Frequency steps 564401 KHz 250
– 564301 166 – 125 (selectable)
– Max. output level (selec.) dB΅V 80 ±5
– Attenuation (program.) dB >15
– Through losses (typ.) dB < 1,5
– Return losses (typ.) dB >12
– Input/Output connectors type F female
– Output impedance ohm 75

Consumption 24Vdc mA
– 530 (564301) 540 (564401) => Not powering the LNB and no inserted CAM
– 630 (564301) 640 (564401) => Not powering the LNB and inserted CAM
– 880 (564301) 890 (564401) => One powered LNB and inserted CAM
– 1130 (564301) 1140 (564401) => Two powered LNBs and inserted CAM

Protection index IP20
