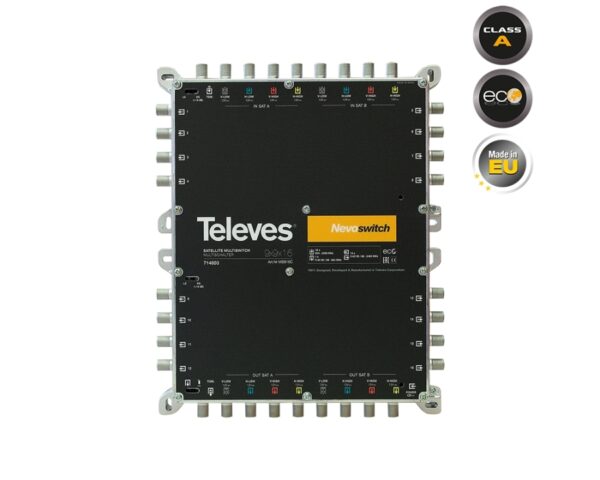

TELEVES 714603 NEVOSWITCH 9x9x16

714603 NEVOSWITCH 9x9x16 belongs to a new range of input/multiple output switches. NEVOSWITCH 9 is a range of 9 input multiswitches (8 satellite polarities + Freeview), available in 8, 12, 16, 24 and 32 user outputs. Expand the number of users by cascading two or more units. Small and compact design to provide an easy and quick installation. The range includes a 9x line amplifier with 25 dB average gain for Satellite inputs and 27 dB gain for Terrestrial with DC pass. 75 ohms switch included to load the unit (standalone) or not (cascade configurations). Highlights: Radiation inmune thanks to its zamak made chassis. All switch references are valid for standalone, star or cascade configuration. Selectable IF gain (+10 dB) for each group or 8 users to balance the output signals. Multiple powering options: mains and line powered. ECO mode: the overall consumption is reduced as the number of users decreases. Main features: Small sized design: Make the most of space to accomodate more TV subscribers.

Main features:
– Use the same multiswitch in either star/cascade or standalone configuration.
– Independent amplification of every feed (8 satellite plus Freeview).
– Multiple powering options: mains and line powered.
– Adjustable gain and equalization to achieve the best performance for every system’s requirements.

Technical features:

– Type 9x9x16
– Switch 1 (L.G/H.G -10db) : Gain in the FI band can be selected individually for each group of 8 users to provide a balanced output.
– Switch 2 (cascade/terminal): Switch to choose between cascade transition or terminal load configuration.
– Frequency range MHz: SAT 950-2400 , TER 88-862 Return 5-65
– Input level dBμV: SAT 102 , TER 104
– Through losses db: SAT 6 ± 2 , TER 3 ± 2
– Tap losses db (Att 10 dB) : SAT 950ΜΗΖ: 3 ± 5, SAT 2400ΜΗΖ: 13± 5
– Tap losses db (GAIN) : TER 7 ± 5
– Tap losses in the return path: TER 40 ± 5
– Isolation db: Polarity >40 , SAT In-Out >25
– LNB control signals: mA LNB Input max. 250 , TER Total 2A
– Powering: Vdc 12
– DC pass In-Out /Out-In
– Max. total consumption mA: Power Supply 12Vdc (PWR) H.G. 225, L.G. 135 , Receiver (12/18V) 33 (35 mA + PSU POWER if not external PSU)
– Temperature Range C : -5 C… +45 C
– Protection level: IP20
– Dimensions mm 208x255x30
– 2-year warranty
