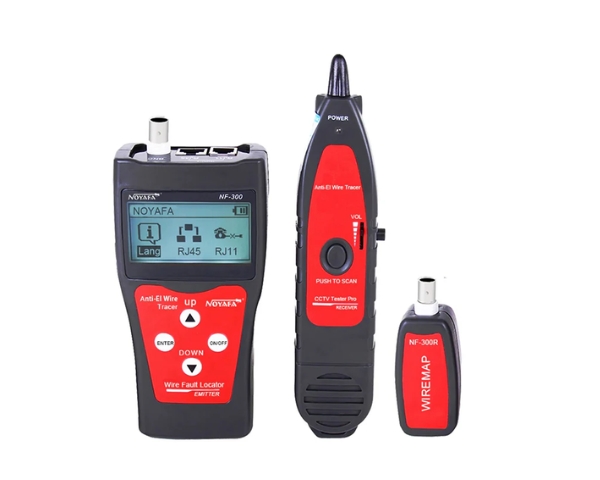

Wire Fault Locator NF-300

Model: NF-300
SKU: 17-10-0002
In Stock
73,78
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
SKU: 17-10-0002 Categories: ,

Download PDF

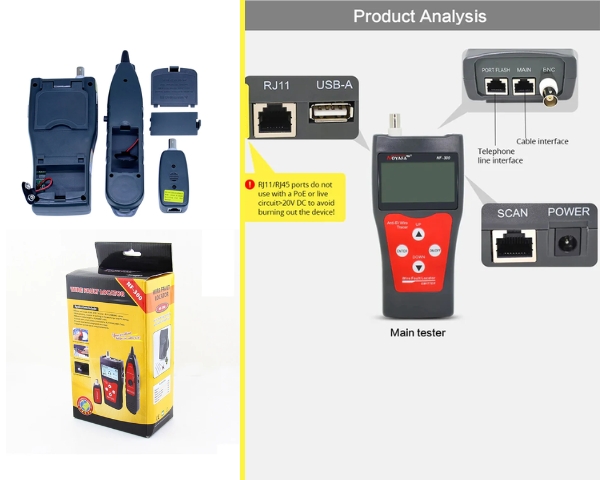

  • Port : BNC, RJ45, RJ11, USB
  • Test length : BNC,RJ45
  • Wiremap Type : BNC, RJ45Cable
  • Tracking Type: BNC, RJ45, RJ11, USB and Metal Cable
  • Other Function : Portflash function
  • Power : 9V Alkaline battery(not included)

Description

NF-300 Wire Fault Locator Wire Tracker Network/Telephone wire/Coaxial Cable Tester. Cable Length Measurement





Highlights
Trace and locate BNC Coax, RJ45 (STP / 4-core) , RJ11, USB-A, and metal cables.
Anti-jamming, capable of working on the exchanger and PC startup.
Measure length of BNC Coax and RJ45 cables.
Test the cable continuity of the BNC Coax, RJ45, RJ11 such as open, short, cross, crosstalk.
Earphone permits use in noisy environments.



Wire Fault Locator NF-300 Benefits

Port Flashing function makes tracing cables on switch easier and convenient

LED Light assists use in dark corners

Earphone permits use in noisy environments

Tracing Cable with continuous and clear tone,AC current rejection

SKU: 17-10-0002

Technical Features

NF-300 Transmitter specifications
LCD screen 53x25mm
Tone frequency 225Hz
The Max. distance of tracing cable electrified wire:3000m
Non-electrified wire: 2000m
The Max. distance of cablemapping 2500m
The Max. distance of cable length testing 1000m
Trace cable coonected to switch anti-jamming
Tone mode 2 Tones, adjustable
Compatible with connectors RJ11,RJ45,BNC,USB
LED lights display Wiremap, tone, tracing
Cable map indication LCD (#1- #8)
Shielded indication LCD (#9)
Voltage protection AC 60V/DC 42V
Low battery display LCD (6.5V)
Battery type DC9.0VNEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD) 185 x 80 x 32mm
NF-300 Receiver specifications
Frequency 225kHz
The Max. working current Less than 70mA
Earphone jack 1
LED illumination 2 LEDs
Battery type DC9.0VNEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD) 218 x 46 x 29mm
NF-300 Remote unit specifications
Compatible with connectors RJ11,RJ45,BNC,USB
Dimensions (LxWxD) 107 x 30 x 24mm



Highlights

wire fault locator line finder wire fault locator line finder wire fault locator line finder wire fault locator line finder wire fault locator line finder wire fault locator line finder
