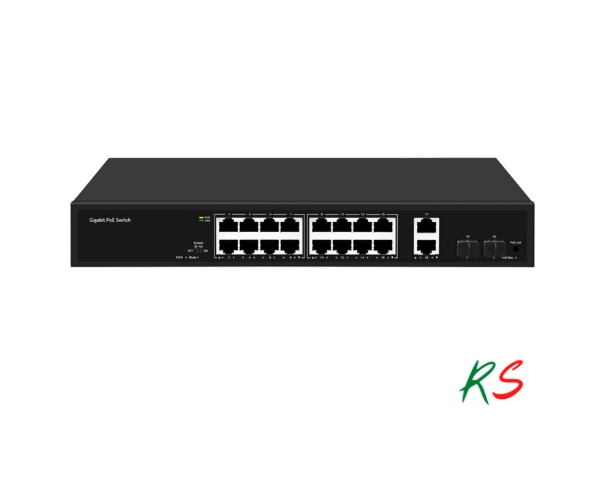

The 20-Port Gigabit PoE+ Switch combines 16 Gigabit PoE ports, 2 Gigabit uplink ports and 2 Gigabit SFP fiber ports in a high-performance network solution. Featuring AI Extend Mode, PoE Watchdog, 180W PoE budget and Gigabit connectivity, it is ideal for IP surveillance, wireless networks, hotels, schools and business environments.
Technical Features
- 16 × Gigabit PoE+ Ports
- 2 × Gigabit Uplink Ports
- 2 × Gigabit SFP Fiber Ports
- IEEE802.3af/at PoE Support
- 180W Total PoE Power Budget
- PoE Watchdog Function
- PoE Priority Support
- AI Extend Mode up to 250m
- 40Gbps Switching Capacity
- 4KV Surge Protection
- 8KV ESD Protection
- Plug and Play Installation
Technical Details
- Model: SST-P16ET2ET2S
- Power:AC100-240V 50/60Hz
- Interfaces
- 16 × Gigabit PoE Ports
- 2 × Uplink Ports
- 2 × Gigabit SFP Ports
- Chipset: EN8850DH, RTL8238B
- Bandwidth: 40Gbps
- Pack Forward Rate: 29.76Mpps
- Package Cache: 3Mbit
- MAC Address Table: 8K
- Jumbo Frame: 9216 Bytes
- Forwarding Mode: Store And Forward
- MTBF: 100000 Hours
- Network Protocols
- IEEE802.3 (Ethernet)
- IEEE802.3u (Fast Ethernet)
- IEEE802.3ab (Gigabit Ethernet)
- IEEE802.3x (Flow Control)
- IEEE802.3z (Gigabit Ethernet Fiber Standard)
- PoE Standards
- IEEE802.3af (15.4W)
- IEEE802.3at (30W) PoE+
- Industry Standards
- EMI: FCC Part 15 CISPR (EN55032) Class A
- EMS: EN61000-4-2 (ESD)
- EMS: EN61000-4-5 (Surge)
- Network Media
- 10Base-T: Cat3, Cat4, Cat5 Class Or Above UTP/STP (≤100m)
- 100Base-TX: Cat5 Class Or Above UTP/STP (≤100m)
- 1000Base-TX: Cat5 Class Or Above UTP/STP (≤100m)
- Optical Media
- Multimode Optical Fiber: 50/125, 62.5/125, 100/140μm
- Single Mode Optical Fiber: 8/125, 8.7/125, 9/125, 10/125μm
- Environmental
- Working Temperature: -10°C ~ 50°C
- Storage Temperature: -40°C ~ 70°C
- Working Humidity: 10% ~ 90%, Non-Condensing
- Storage Humidity: 5% ~ 95%, Non-Condensing
- LED Indicators
- PWR (Power)
- 1-20 Green Link & Data Indicators
- 1-16 Yellow PoE Indicators
- PoE LED Key
- PWR Status
- On: Powered On
- Off: Powered Off
- 1-20 Green Link & Data Status
- On: Link Normal
- Off: Link Blocked
- Flashing: Data Transmitting
- 1-16 Yellow PoE Status
- On: PoE Power Supply Normal
- Off: PoE Not Powered
- PoE Max Power Indicator
- Off: PoE Power Usage Less Than 90%
- Flashing: PoE Power Usage Between 90% And 95%
- On: PoE Power Usage Between 95% And 100%
- Mode DIP Switch Indicator
- On: Extend On
- Off: Extend Off
- PoE LED Key
- Default Green: Link/Data Status
- Yellow: PoE Status
- Extend DIP Switch
- OFF：common mode, all interfaces can communicate with each other, the
transmission distance is less than 100 meters, the transmission rate is 10/100/1000M
adaptive; The port AI mode is disabled - ON: Link extension mode, 9-16 ports force 10M, link 250M (enable POE watchdog),Port AI mode is enabled;
- OFF：common mode, all interfaces can communicate with each other, the

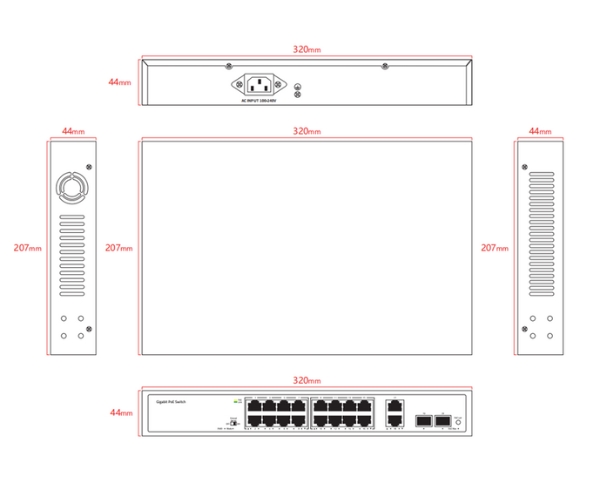

- Product Dimensions: 320 × 207 × 44mm
- Package Dimensions: 370 × 290 × 85mm
- Product Net Weight: 1.78kg
- Product Gross Weight: 2.28kg
- Power Specifications
- Input Voltage: AC 100-240V 50-60Hz
- Supply Power: 52V / 3.84A
- Power Consumption
- Non-PoE Board Power: Maximum 10W
- PoE Power: Maximum 180W
- Package Contents
- Switch × 1
- Power Cord × 1
- User Manual × 1
- Certification × 1
| Manufacturer | RS |
|---|---|
| Switch Type | Unmanaged |
| Speed | Gigabit |
| Device Total Ports | 20 |
| Mount Type | Rack Mount |
| POE Budget | 180W |
| POE Ports | 16 |
| POE Switch | Yes |
| Power over Ethernet (PoE) | PoE+ |
| SFP Ports | With SFP Ports |
| No of SFP Ports | 2 |
