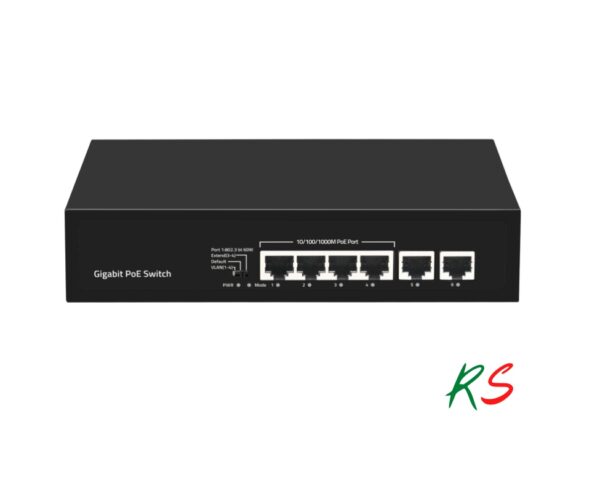

RS 6-Port Gigabit PoE+ Switch SST-P4ET2ET
- 4* Gigabit PoE+ ports+2*Gigabit Ethernet ports.
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards.
- Ethernet ports support 10/100/1000M self-adaptive.
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

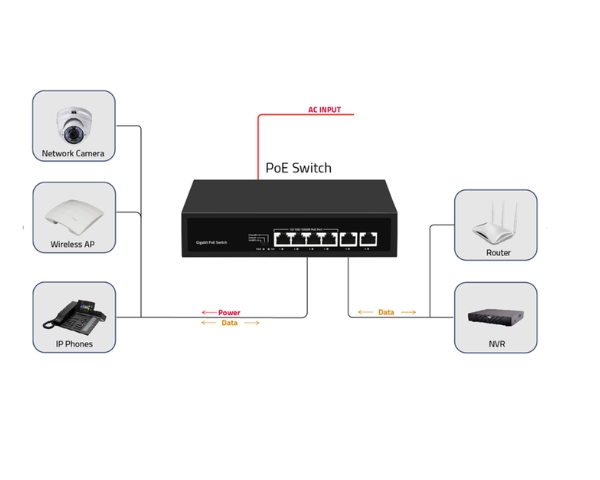

The RS 6-Port Gigabit PoE+ Switch delivers reliable Gigabit networking with 4 PoE+ ports and 2 Gigabit uplink ports. Featuring VLAN, Extend and Default modes, IEEE802.3af/at support, and transmission distances up to 250m, it is ideal for IP cameras, wireless access points and VoIP deployments.
Technical Features
- 4 × Gigabit PoE+ Ports
- 2 × Gigabit Ethernet Uplink Ports
- IEEE802.3af/at PoE Support
- VLAN Isolation Mode
- Extend Mode up to 250m
- Default Network Mode
- Auto MDI/MDIX Support
- Store-and-Forward Switching
- 12Gbps Switching Capacity
- Gigabit Line-Speed Forwarding
- Plug and Play Operation
- Suitable for CCTV, VoIP and Wireless Networks
Technical Details
- Power AC Input: 100-240V AC, 50/60Hz
- Interfaces: 4 × Gigabit PoE Ports, 2 × Gigabit Ethernet Ports
- Chipset: RTL8367 (5E19)
- Bandwidth: 12Gbps
- Packet Forwarding Rate: 8.928Mpps
- Packet Cache: 1Mb
- MAC Address Table: 2K
- Jumbo Frame: 9216 Bytes
- Forwarding Mode: Store Forward
- Network Protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
- PoE Standards: IEEE802.3af (15.4W), IEEE802.3at (30W)
- Network Media 10Base-T: Cat3, Cat4, Cat5 or Above UTP/STP (≤100m), 100Base-TX: Cat5 or Above UTP/STP (≤100m), 1000Base-TX: Cat5 or Above UTP/STP (≤100m)
- Industry Standards: EMI: FCC Part 15, CISPR (EN55032) Class A, EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
- Certifications: CE, FCC, RoHS
- Working Temperature: -10°C ~ 50°C
- Storage Temperature: -40°C ~ 70°C
- Working Humidity: 10% ~ 90%, Non-Condensing
- Storage Humidity: 5% ~ 95%, Non-Condensing
- LED Indicators
- PWR (Power Indicator)
- Mode (DIP Indicator)
- Ports 1-6 Green Link/Data Indicators
- PWR Status
- On: Powered On
- Off: Powered Off
- Mode Status
- On: VLAN Mode (Port Isolation)
- Off: Default Mode
- Flashing: Extend Mode
- Ports 1-6 Status
- On: Link Connection Normal
- Off: Link Not Working
- Flashing: Data Transmitting
- DIP Switch Modes
- VLAN: Port Isolation: Ports 1-4 Isolated From Each Other While Communicating With Uplink Port
- Default: All Ports Communicate With Each Other, Transmission Distance Up To 100m, 10/100/1000Mbps Auto-Adaptive
- Extend: Ports 3-4 PoE and Data Transmission Distance Extended Up To 250m and Transmission Speed Reduced To 10Mbps
- Product Dimensions: 200 × 118 × 44mm
- Package Dimensions: 245 × 190 × 60mm
- Product Net Weight: 0.61kg
- Product Gross Weight: 0.91kg
- Package Contents: Switch × 1, Power Cord × 1, Manual and Certificate of Conformity × 1
| Manufacturer | RS |
|---|---|
| Switch Type | Unmanaged |
| Speed | Gigabit |
| Device Total Ports | 6 |
| Mount Type | Desktop |
| POE Switch | Yes |
| POE Budget | 85W |
| POE Ports | 4 |
| Power over Ethernet (PoE) | PoE+ |
