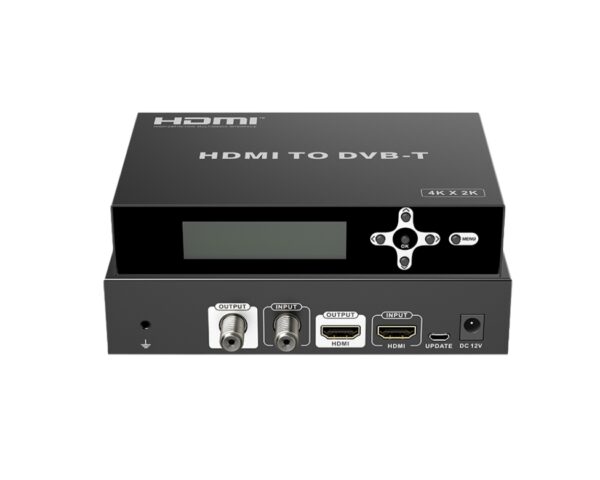

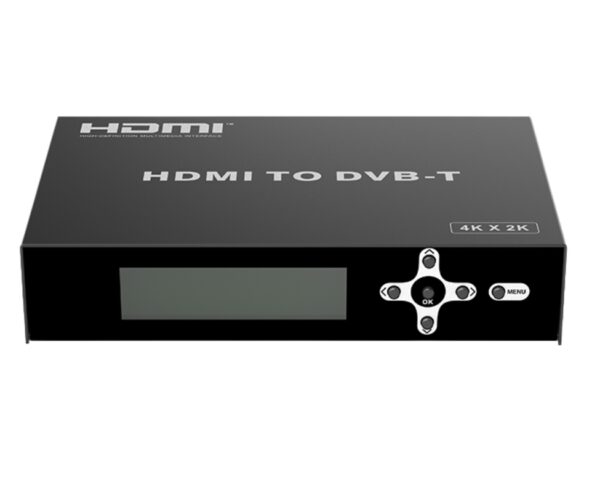

4K HDMI to DVB-T UHD Converter with Loop LKV679P
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

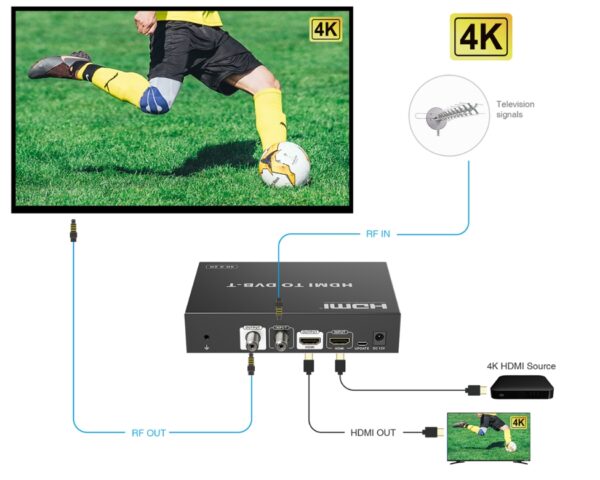

The HDMI to DVB-T RF Modulator accepts HDMI input from the sources and modulates the signals to a CATV/DVB-T channel. It supports point to point, point to multi-point and multi-point to multi-point connection, enables to display HDMI signal in every TV built in DVB-T module over existing coax cable.
Key Features
- Wall-mounted function, easy installation
- Strong anti-noise and anti-interference ability
- Support multiple modulators to be installed to distribute as many channels you need
- Distribute one source to multiple displays with one modulator via CATV splitter
- Support DVB-T digital high definition RF signal output
- HDMI input signal resolution up to 3840×2160@60Hz, RF output signal resolution up to 3840×2160@30Hz
- Lightning protection, surge protection, ESD protection
Highlights:

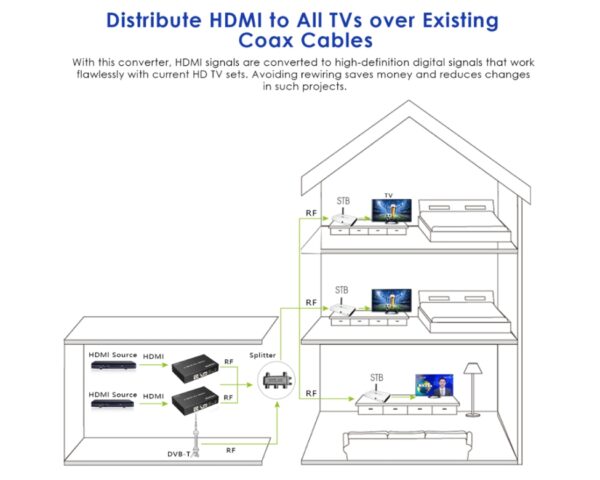

- Distribute HDMI to All TVs over Existing Coax Cables – With this converter, HDMI signals are converted to high-definition digital signals that work flawlessly with current HD TV sets. Avoiding rewiring saves money and reduces changes in such projects.

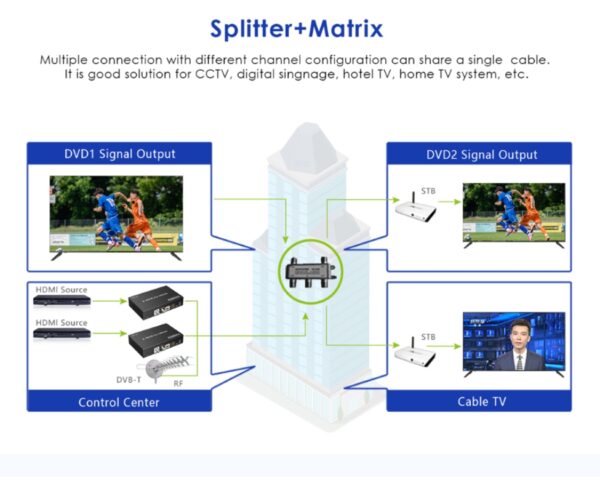

- Splitter+Matrix – Multiple connection with different channel configuration can share a single cable. It is good solution for CCTV, digital signage, hotel TV, home TV system, etc.
- Multiple Connections to Meet Different Scenarios
Technical Details
- HDMI Signal: HDMI 2.0, compatible with HDCP 1.4 / HDCP 2.2
- HDMI DDC Signal: 5Vp-p (TTL)
- HDMI TMDS Signal: 0.5 ~ 1.5Vp-p (TMDS)
- Input HDMI Resolution Supported: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz
- RF Output: 720p@50/60Hz, 1080p@24/25/30Hz, 3840×2160@24/25/30Hz
- Video Encoding: H.264 / H.265 (4K)
- Audio Encoding: MPEG2
- Coaxial Output Standard: DVB-T
- Coaxial Cable Required: RG6, RG7, RG11
- Frequency: 177.5 – 866 MHz
- Effective Bitrate Max: 24 Mbps
- Insert Loss: +2 dBm
- RF Output Wattage (TX): -46 dBm ~ -19 dBm
- RF Interface British system: (75Ω Type F)
- Delay Time: 200 ~ 300 ms (depends on receiver decoding ability)
- Audio Format: MPEG (44.1 kHz, 48 kHz)
- Power Supply: DC 12V / 1A
- Product Consumption: < 8 W
- Working Temperature: -20 ~ 60 ℃
- Storage Temperature: -30 ~ 70 ℃
- Relative Humidity: 0 ~ 90% RH (no condensation)
- Product Dimensions: 158 × 115.3 × 33 mm
- Weight: 476 g
- Color: Black
| Manufacturer | Lenkeng |
|---|---|

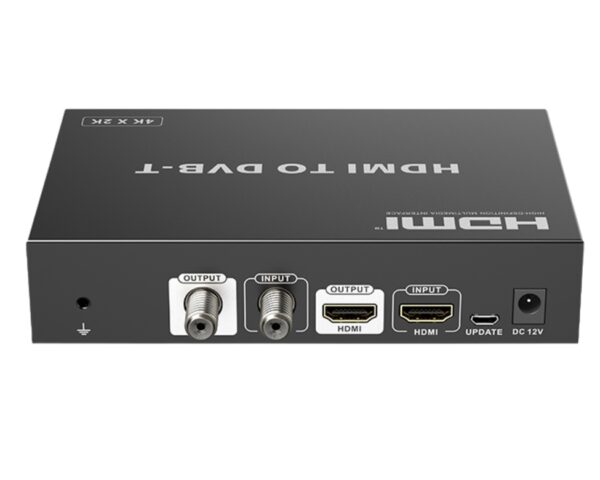

| Device ports | HDMI in, HDMI out, RF in, RF out |
| HDD Maximum Resolution | 4K@30Hz |
| HDD Transmit Type | Over Coax |
| HDD HDMI Loop | Yes |
| HDD Support IR | No |
| HDD type | HDMI Modulator |
Specifications
| HDMI Signal | HDMI 2.0, compatible with HDCP 1.4 / HDCP 2.2 |
| HDMI DDC Signal | 5Vp-p (TTL) |
| HDMI TMDS Signal | 0.5 ~ 1.5Vp-p (TMDS) |
| Input HDMI Resolution Supported | 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz RF Output: |
| Video Encoding | H.264 / H.265 (4K) |
| Audio Encoding | MPEG2 |
| Coaxial Output Standard | DVB-T |
| Coaxial Cable Required | RG6, RG7, RG11 |
| Frequency | 177.5 – 866 MHz |
| Effective Bitrate | Max: 24 Mbps |
| Insert Loss | +2 dBm |
| RF Output Wattage (TX) | -46 dBm ~ -19 dBm |
| RF Interface | British system (75Ω Type F) |
| Delay Time | 200 ~ 300 ms (depends on receiver decoding ability) |
| Audio Format | MPEG (44.1 kHz, 48 kHz) |
| Power Supply | DC 12V / 1A |
| Product Consumption | < 8 W |
| Working Temperature | -20 ~ 60 ℃ |
| Storage Temperature | -30 ~ 70 ℃ |
| Relative Humidity | 0 ~ 90% RH (no condensation) |
| Product Dimensions | 158 × 115.3 × 33 mm |
| Weight | 476 g |
| Color | Black |
