4K@60Hz HDR 70M HDMI Extender with POC LKV565P
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

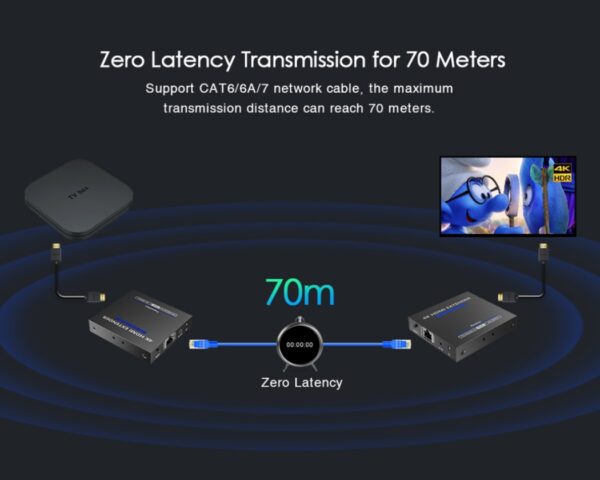

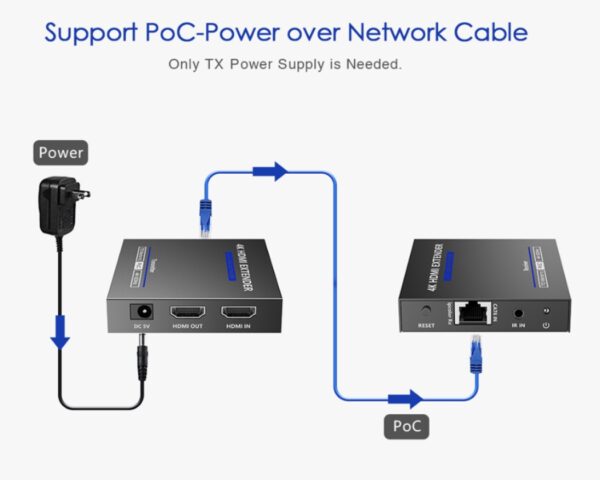

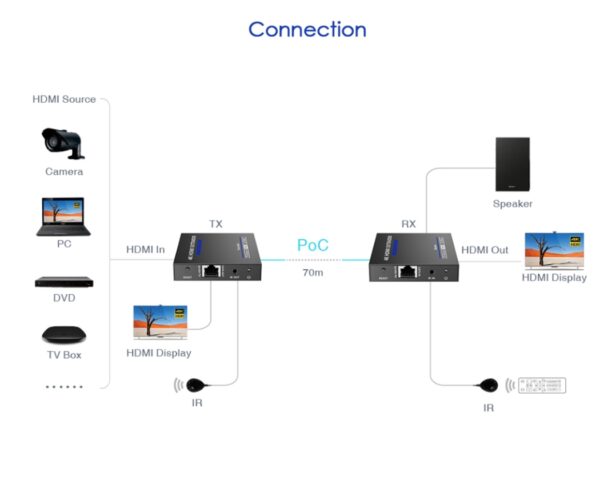

This is an HDMI™ point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI™ signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI™ loop out, IR passthrough, 3.5mm audio output, etc. This kit is a reliable as it can work as Power Over Cable ultra-high-definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.

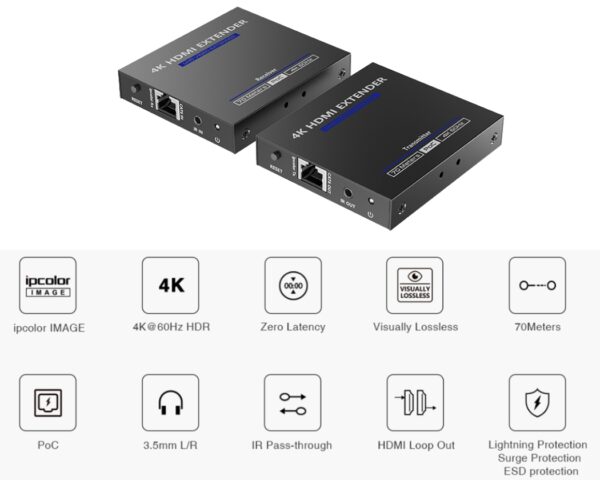

Technical Features:
- IPColor Image
- 4K@60Hz HDR
- Zero Latency
- Visually Lossless
- 70Meters
- PoC
- 3.5mm L/R
- IR Pass Through
- HDMI Loop Out
- Lightning/Surge/ESD Protection
Technical Details
- HDMI Length: ≤5m
- Maximum Transfer Rate: 18Gbps
- Maximum Transmission Bandwidth: 600MHz
- EDID Passthrough: Yes
- Compatibility: HDMI 2.0 (Deep Color, 4K, HDR, YUV4:4:4), HDCP 2.2
- Supported Resolutions: 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
- Transmission Distance: CAT6 / CAT6A / CAT7 ≤70m
- Audio Formats: LPCM, DTS-HD, DTS-Audio, Dolby Digital 5.1CH, Dolby Atmos

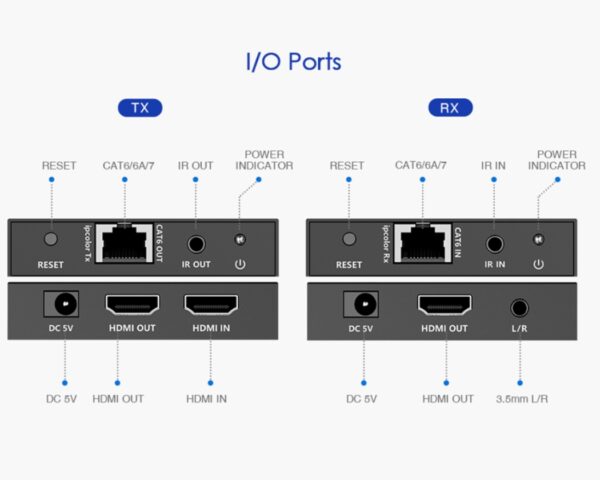

- IR Interface: TX: 1 × 3.5mm IR OUT (Female), RX: 1 × 3.5mm IR IN (Female)
- IR Receiving Range: ≤5m
- Infrared Frequency: 20KHz ~ 60KHz
- Power Supply: TX: DC 5V / 2A , RX: DC 5V / 2A
- Power Consumption: TX: <4W, RX: <4W
- Working Temperature: -20°C ~ 60°C
- Storage Temperature: -30°C ~ 70°C
- Humidity: 0 ~ 90% RH (No Condensation)
- Housing: Metal
- Weight: TX: 140g, RX: 140g
- Color: Black
- Dimensions: TX/RX: 85.0(L) × 75.5(W) × 16.5(H) mm
- Protection:
- ESD Protection
- Contact Discharge Level 2 (±4KV)
- Air Discharge Level 3 (±8KV)
- Standard: IEC61000-4-2
| HDD type | HDMI Extender |
|---|---|
| HDD HDMI Loop | Yes |
| HDD Maximum Distance | 70m |
| HDD Maximum Resolution | 4K@60Hz |
| HDD RX Power Type | POC |
| HDD Support IR | Yes |
| Manufacturer | Lenkeng |
| HDD Set-type | Set (Rx + Tx) |
| HDD Transmit Type | Point to Point ( Network Cable ) |
