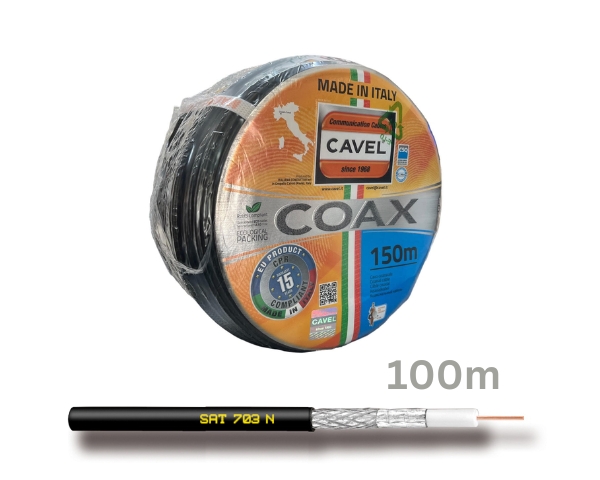

CAVEL SAT703N 100m Outdoor RG6

Model: SAT703N
SKU: 06-10-0003
In Stock
58,30
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
Other people want this. 11 people have this in their carts right now.

Download PDF

  • Outdoor installation cable
  • 6,6 mm

Description

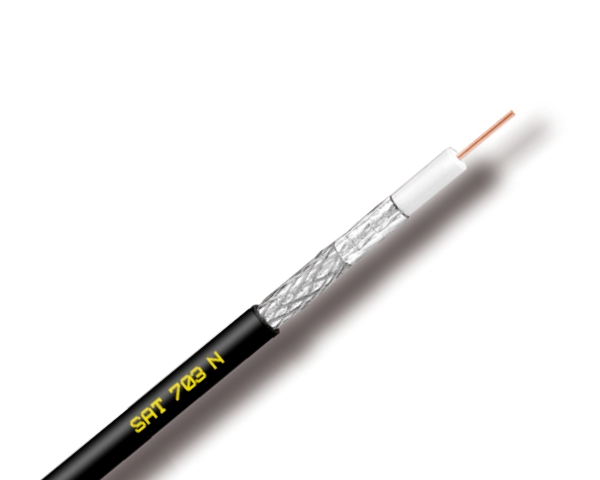

CAVEL Double Shielded Coaxial Drop Cable, for Wide Band – 75 Ohm Coaxial Drop Cable for Wide Band – 75 Ohm SAT703N PVC Outer Sheath





CONSTRUCTION DATA
Inner Conductor Ø mm 1,13
material Cu
Dielectric Ø mm 4,80
material PEG
Film Foil Laminate material APA
Braid material CuSn
Braid Optical Coverage % 45
Diameter over Braid Ø mm 5,30
Outer Sheath Ø mm 6,6
material PVC
PHYSICAL DATA
Copper Content kg/km 14,4
Cable Weight kg/km 39,5
Min bending radius x 1/n mm 35/70
Max.Tensile Strength N 150
ELECTRICAL DATA
Impedance Ohm 75±3@200 MHz
Capacitance (@1kHz) pF/m 52 ± 2
Velocity Ratio % 85
Attenuation (at 20°C )
at 5 MHz dB/100m 1,6
at 10 MHz dB/100m 2,1
at 30 MHz dB/100m 3,2
at 50 MHz dB/100m 4,1
at 200 MHz dB/100m 7,9
at 300 MHz dB/100m 9,8
at 470 MHz dB/100m 12,4
at 862 MHz dB/100m 17,1
at 1000 MHz dB/100m 18,5
at 1750 MHz dB/100m 24,9
at 2150 MHz dB/100m 27,9
at 2400 MHz dB/100m 29,6
at 3000 MHz dB/100m 33,4
Structural return loss (SRL)
at 5 - 470 MHz dB >30
at 470 - 1000 MHz dB >28
at 1000 - 2000 MHz dB >26
at 2000 - 3000 MHz dB >22
Transfer Impedance (Zt) Class C
5 - 30 MHz mOhm/m < 23
Screening Attenuation (SA) Class B
at 30 - 1000 MHz dB >80
at 1000 - 2000 MHz dB >80
at 2000 - 3000 MHz dB >65
DC Conductor Resistance inner/outer Ohm/km 18,0 / 22,0
Loop resistance Ohm/km 40,0
Sheat Insulation voltage (spark test) kV 3,0
Maximum current (Ieff) A 8

Additional information
