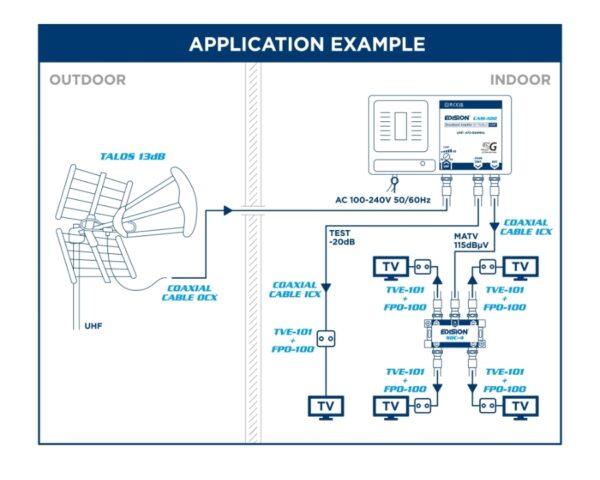

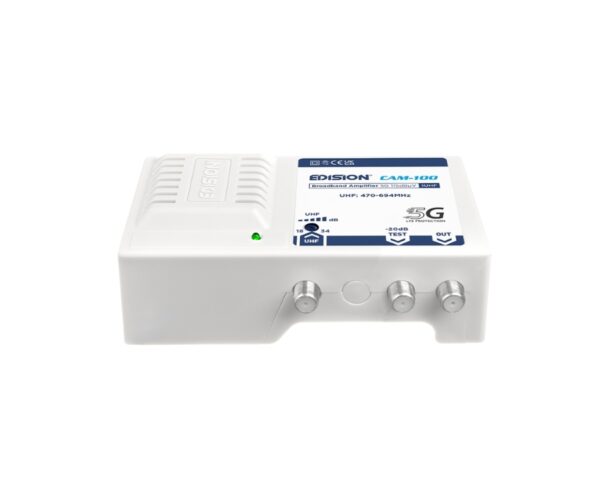

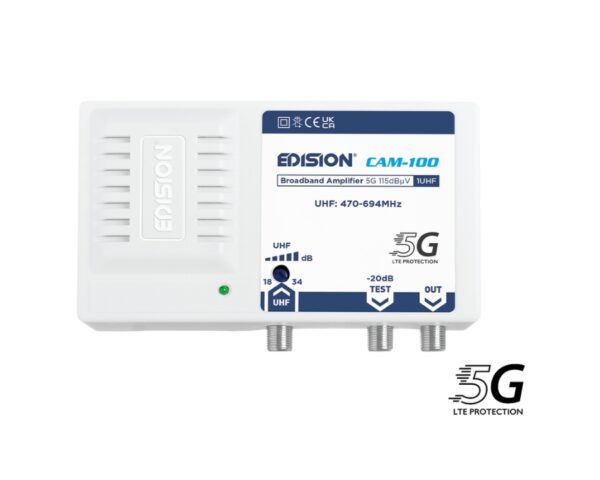

EDISION CAM-100 is an MATV Broadband Amplifier for Digital Terrestrial Channels DVB-T/T2, for large installations of antenna systems (Master Antenna installation of a building).
It has 1 UHF signal input with gain control, for the appropriate selection by the technician. It provides the possibility of connecting 1 UHF antenna for Terrestrial Digital channels with maximum Output Level 115 dbμV for the correct distribution to televisions.
It has a 5G LTE interference cut-off filter and its circuitry is contained in an all-metal housing to protect against electromagnetic interference. This unit is inside a box made of synthetic material with compact dimensions, together with its power supply. Outside the box are the signal input and output indicators, access to the input control as well as an independent TEST output [-20db] for testing.
Technical features:
- MATV Broadband Amplifier for Digital Terrestrial DVB-T/T2 TV channels, with 5G LTE interference cutoff
- For INDOOR use only
- Frequency Range UHF: 470-694 Mhz
- Protection from 5G LTE interference: YES
- 5G LTE interference rejection: <20dB
- Input ports: 1 UHF
- Output ports: 1 + 1 TEST (-20dΒ)
- Maximum Output Level: 115 dbμV
- Adjustable gain UHF: 18 up to 34 dB
- Noise Figure: 5 dB
- Impedance: 75 Ohm
- Connections: Type-F plugs, female
- Powering: on board 220v transformer with 2PIN EU plug
General:
- Power Supply: AC 100-240 50/60Hz
- Power Consumption: max. 7W
- Operating Temperature: 0°C … +50°C
- Storage Temperature: -20°C … +70°C
- Humidity Range: 10% … 85% RH, non-condensing
- Dimensions (W x H x D): 130x85x40 mm
- Weight: 0,24 kg
- Color: white
- Packing: High Quality colored giftbox with hanging port
- Warranty: 2 years
Package includes:
- MATV Broadband Amplifier CAM-100
- Plastic screwdriver for adjustments
- Upat and mounting screws
- Manual GR/EN/DE/ES/IT/FR
| Weight | 0.29 kg |
|---|---|
| Manufacturer | EDISION |
| Project Scenario | MATV |
| Frequency Range | 47-694 |
