EDISION HDMI MODULATOR 3in1 QUAD+

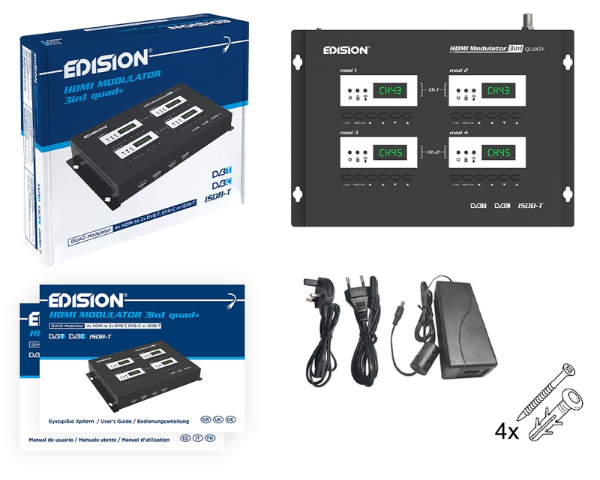

Package includes:
- HDMI Modulator 3in1 QUAD
- Power Supply Unit 12V/4.5A universal EU/UK
- Mounting screws
- User Manual EN/DE/GR/ES/IT/FR
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
EDISION Quad-channel digital modulator. 4x HDMI inputs to 2x DVB-T, DVB-C or ISDB-T channels in one RF output, VHF/UHF MPEG4 FULL HD, with pre-configured IDs and easily selectable programming. Up to 4x HDMI signal inputs from any HDMI source (Terrestrial & Satellite TV receivers, cameras, DVD’s, DVR’s, Digital Signage, etc) is converted to 2 x up to FULL HD 1080p 60FPS, Digital Terrestrial DVB-T/ISDB-T or Cable DVB-C MPEG4 signal outputs, in VHF/UHF band.
Produces excellent quality digital COFDM/QAM signal output, combined with reliable functionality and stable operation, under all configurations. With 4x USB ports for fast CONFIG DATA function for each sub-unit. Plus, its FAST PRE-CONFIG function offers 50 pre-configured and easily selectable ID’s for quick and easy programming. The selection of each one of the 4 IDs per quad unit, is made for each individual sub-unit on its own Display/Mod and the configuration of the 2 output channels, from the menus and displays of Modulator Displays 1 & 3.
Technical features:
- Digital quad-channel HDMI Modulator to DVB-T, DVB-C or ISDB-T
- INPUT signal: 4x HDMI v1.4a
- RF OUTPUT signal: 2 x Digital Terrestrial DVB-T, ISDB-T or Cable DVB-C MPEG4
- Frequency Range DVB-T: VHF (CH.5-12) & UHF (CH.21-69)
- Frequency Range ISDB-T: VHF (CH.7-13) & UHF (CH.14-69)
- Frequency Range DVB-C: 47-862 MHz
- High Video Resolution up to FULL HD 1080p 60FPS
- RF Output Level: Factory default 90 dbμV, with adjustable gain up to +6dbμV or attenuation up to -14dbμV
- MER more than 35dB
- Symbol Rate: 6MHZ: Up to 2×8000 MBPS, 7MHZ: Up to 2×9000 MBPS, 8MHZ: Up to 2×10000 MBPS
- Bandwidth: 6MHZ, 7MHZ, 8MHZ
- Video Encoder MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, [email protected]
- Audio encoder MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- Processor System: 4x 800MHz 32Bit ARM9 CPU
- Memory 4x DDRIII 16bit 1GBit/s (Embedded) & NOR Flash 32Mbit
- Fast Pre-Config Function / 50 IDs Selectable
- Backup Config File by USB (CFG)
- Software Upgrade by USB

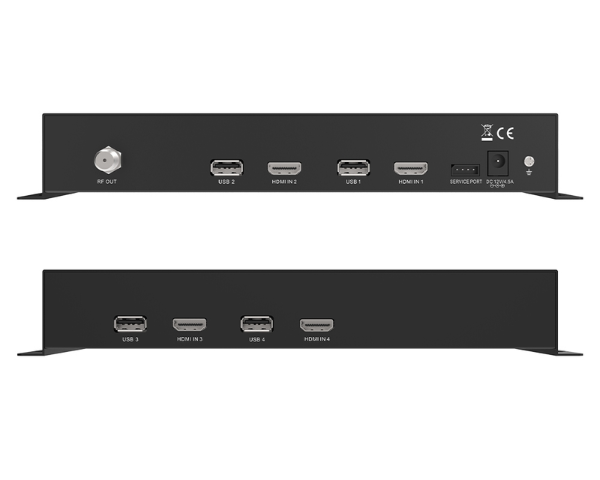

- Ports: 4x HDMI IN, RF OUT, 4x USB, SERVICE PORT, DC 12V/4.5A, GROUND

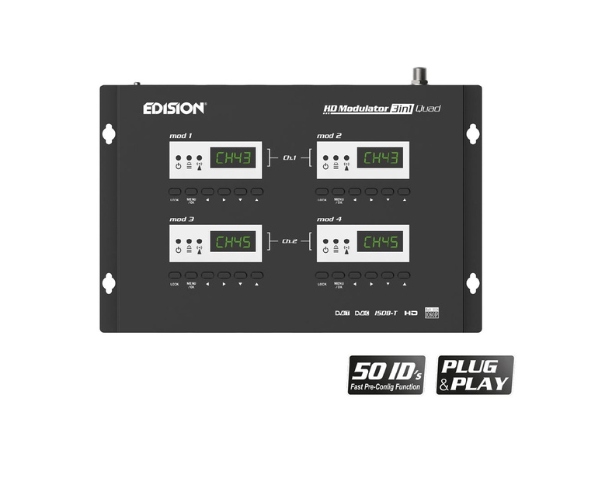

- Four (4) x 4-digit LED displays
- Four (4) x 6-display buttons: Menu/OK, Left, Right, Up, Down
General:
- Power Supply: 100 – 240 AC 50/60Hz
- Input Voltage: DC 12V 4.5A
- Power Consumption: max. 20.0W
- Operating Temperature: 0°C … +50°C
- Storage Temperature: -20°C … +70°C
- Humidity Range: 10% … 85% RH, non-condensing
- Dimensions: 255x195x40 mm
- Weight: 1,64 kg
- Color: black
- Warranty: 2 years
| Weight | 1.93 kg |
|---|---|
| Manufacturer | EDISION |
| HDD HDMI Loop | No |
| HDD Support IR | No |
| HDD type | HDMI Modulator |
| HDD Transmit Type | Over Coax |
| HDD Maximum Resolution | 1080p@60Hz |
| Device ports | HDMI in, RF out |
