EDISION SOHO Wall-Mount Cabinet 19″ 540×400 7U flat pack
Only 1 left in stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

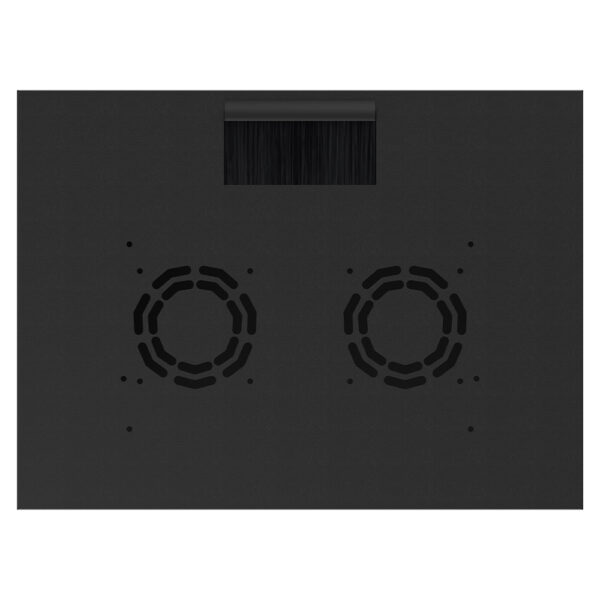

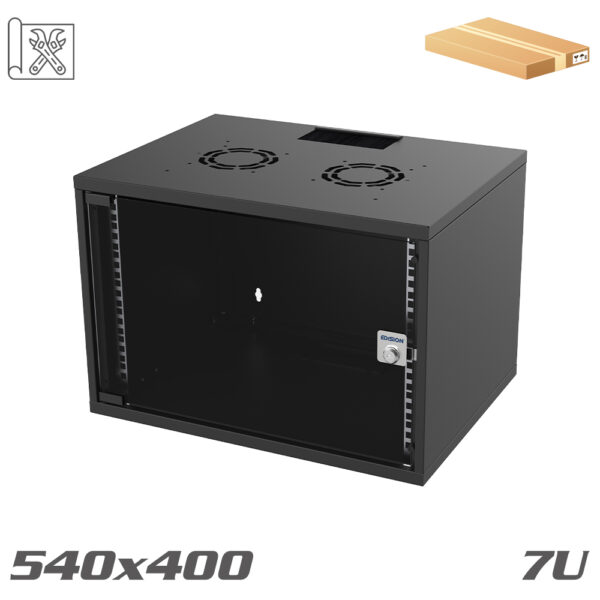

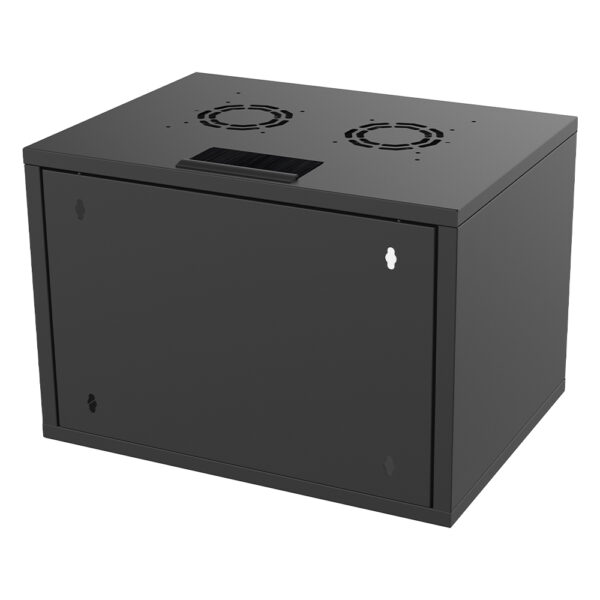

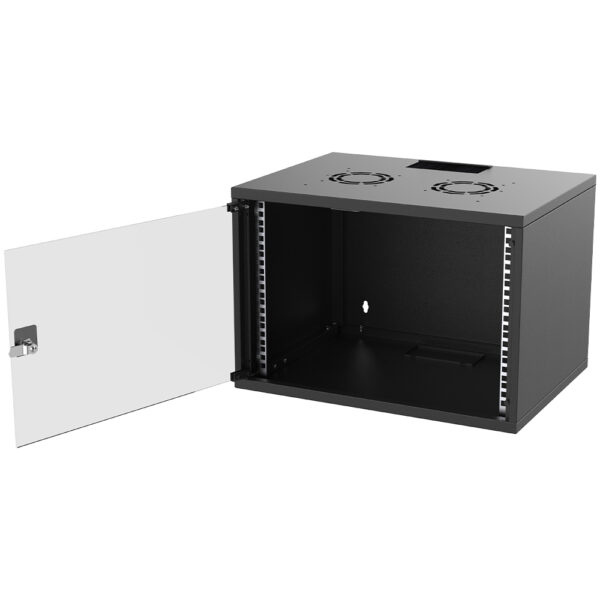

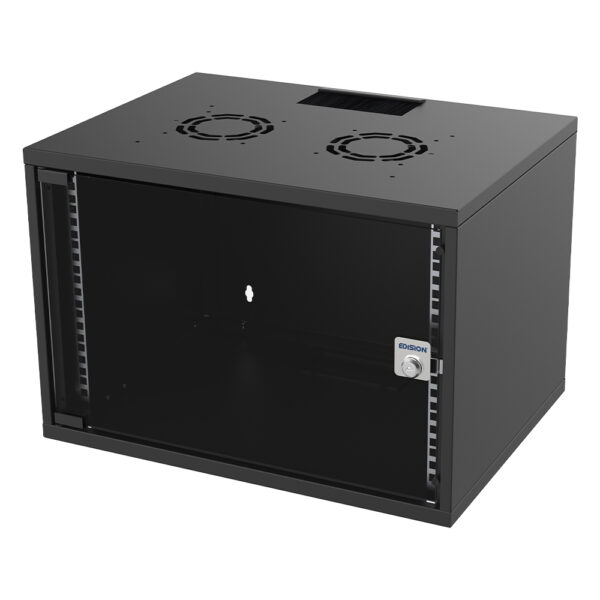

EDISION SOHO Wall-Mounted Cabinet 19″ 540×400 7U black ”flat pack”, is an excellent choice of basic rack cabinet, in a compact ”flat pack” package for convenient transport, with all the individual parts inside for quick and easy assembly. It has a 4.0mm glass front door with security lock, 2 cable routing ports on the top and bottom, passive ventilation on the top, which is also easily upgraded to active, with the addition of the extra optional product code of fan KIT.
An extra feature is that the easy-to-install wall mount base is detachable, offering you the ability to remove the entire rack from the wall, for work or transport.
It is designed and intended for small Small Office/Home Office installations for Switch, Router, Patch Panel, RF, CCTV and similar network equipment installations, providing you with selectable positioning inside and a lock, while it features an easy-to-use and durable construction, with modern aesthetics.
Technical Specifications:
– Type: Wall-Mounted Rack Cabinet 19″ ”flat pack”
– Code: 60-02-0022
– Rack units: 7U
– Dimensions: 540 (W), 400 (D), 370 (H) mm
– Rack rails width: 19″ / 483 mm (W)
– Rack rails thickness: 1,2 mm
– Number of doors: 1
– Front door: full glass 4.0mm
– Rear door: No
– Removable side panels: No
– Locking: 1-point on the front door
– Cable entry: 1x brush on the top, 1x plastic cover on the base
– Ventilation slots: Yes
– Grounding: No
– IP protection: IP20
– Easy Hang System: Yes
– Load capacity: up to 60 kg
– Material, thickness: Steel 0,8mm
– Surface finishing: Electrostatic painting
– Color: RAL 9005 Black
– Net Weight: 9,0 kg
– Packing type: Flat pack, not Assembled
Package includes:
– Wall-Mounted Cabinet 7U ”flat pack” (not Assembled)
– Mounting KIT (screws, cage nuts, washers)
– Lock with 2 keys
– Assembly instructions
| Weight | 9.8 kg |
|---|---|
| Manufacturer | EDISION |
| Cabinet Size | 7U |
| Cabinet Depth | 40cm |
