The Triple Zone IR Repeater amplifies the IR signal from your remote control, allowing you the flexibility in placing your A/V components. Using the kit allows you to conceal audio visual components without affecting remote control performance.
The Triple Zone IR Repeater is essentially 3 of our single zone IR Repeater kits in one. Having 3 different zones on one repeater kit allows you to isolate devices to a specific zone so that the IR signal from your remote control is only passed to the devices attached to that particular “zone”.
How do I set it up correctly?

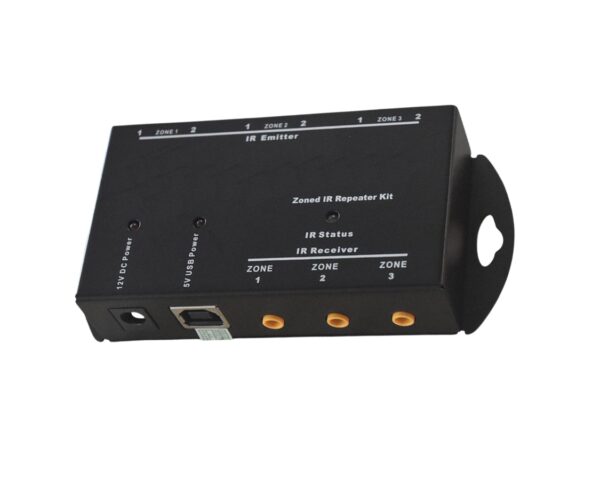

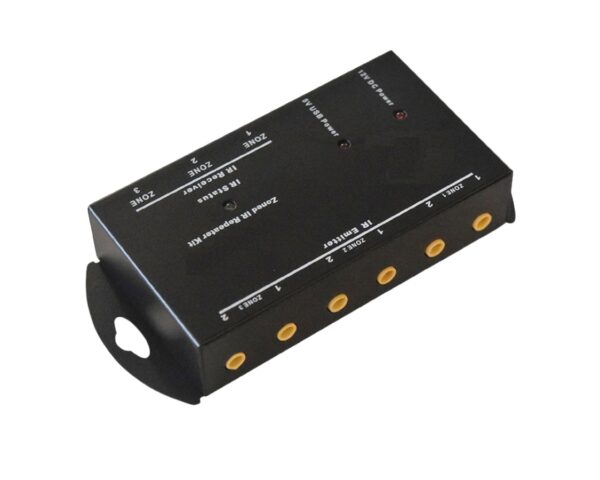

- There are 3 “zones” to the repeater kit. You will note that each IR receiver port on the distribution block is labelled “Zone 1”, “Zone 2” or “Zone 3”. Each zone also has two emitter ports associated with that zone and are grouped together. You will note that each grouping of emitter ports is also labelled “Zone 1”, “Zone 2” or “Zone 3”.
- Each zone can control up to 4 devices using the included dual emitter cables.
To set devices up on “Zone 1” plug an IR receiver into the “Zone 1” IR receiver port and then plug an emitter cable into one of the emitter ports labelled “Zone 1”. - Any device to which you now attach the emitter cable that is plugged into the “Zone 1” emitter port, will be controlled by the IR receiver plugged into “Zone 1” IR receiver port.
Technical Details
- Receiving Frequency: 34~60 KHz, RC-MM codes
- Emitting Frequency: 38 KHz
- Receiving Distance: Up to 8 meters (remote control dependent)
- Emitting Distance: Up to 100 mm
- Power Consumption: 12VDC, 150mA
- Jack Size: 3.5 mmDistribution Block: 110 x 50 x 25 mm

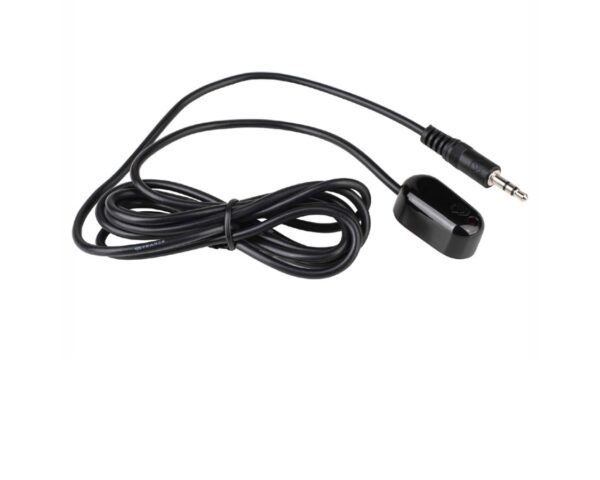

- IR Receiver Cable length: 1.5 meters

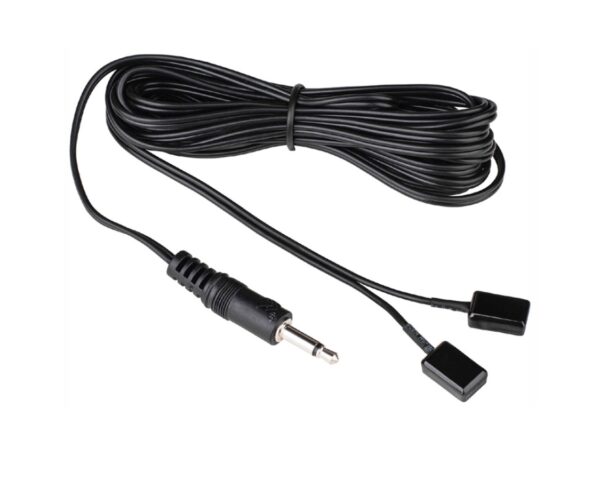

- Dual Eye IR Emitter Cable length: 3 meters

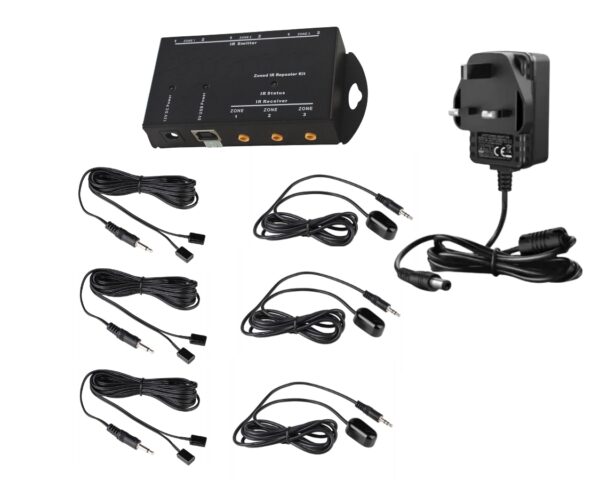

Package Includes:
IR Extender Kit Triple Zone JYC-Z306 *1pcs
12v 1A Power Supply * 1pcs
IR Receiver Cable * 3pcs
IR Emitter Cable * 3pcs
Datasheet * 1pcs
| Manufacturer | JYC |
|---|
