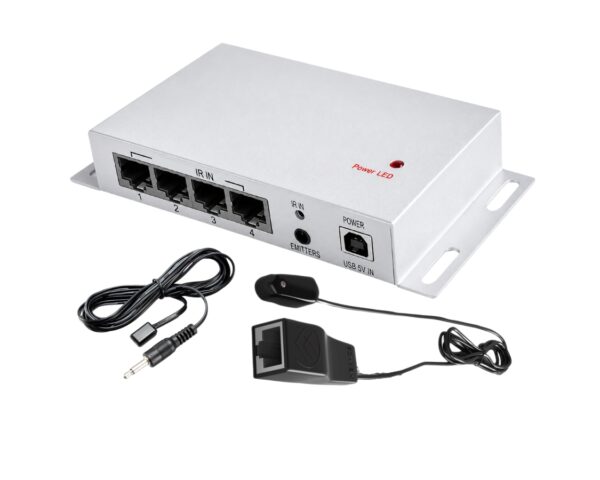

IR Extender Kit Over LAN Cable NB101(Up to 4 TV)

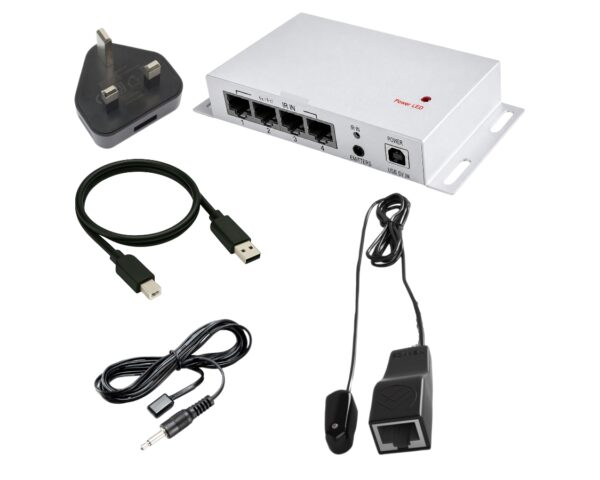

Package Includes

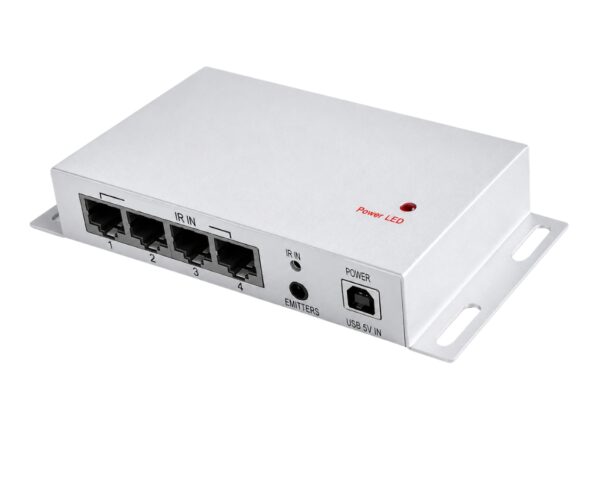

1x NB101 Transmitter Host(up to 4 TVs)
1x Single Transmitter Cable JYC-IRE1

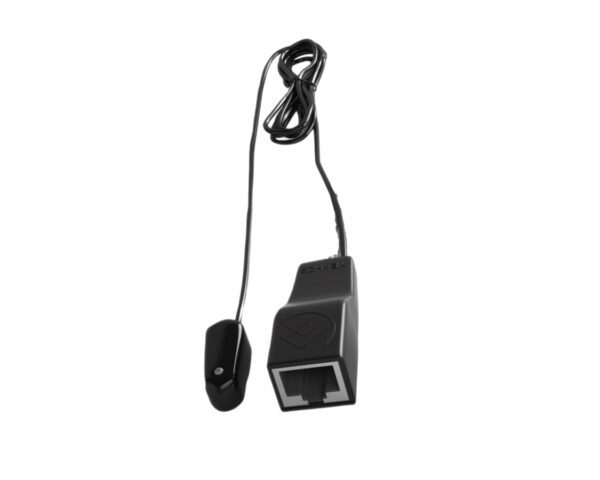

1x IR Extender Rx for NB101 Kit
1x USB-A Power Cable with 5V UK Supply
1x Manual
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

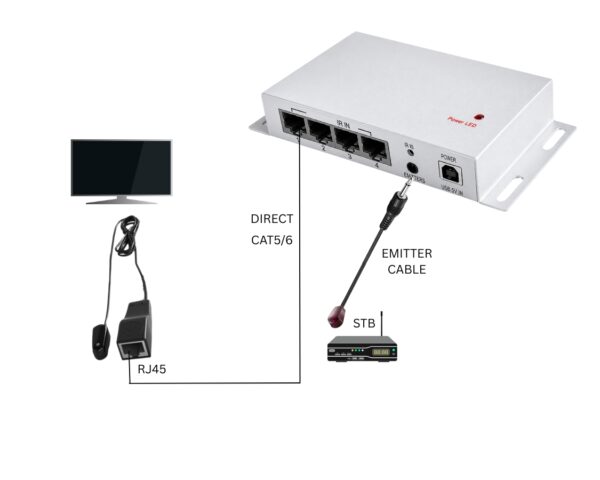

NB101 IR Extender Kit consists of a transmitter (up to 4 transmitters) and a Receiver ( up to 4 Receivers). It can achieve more than one place to share IR Execution and change channels of the Device Remotely using Cat5/Cat6 Cable. It adopts cat5/6 transmission scheme and has the advantage of a long transmission range, strong anti-interference. NB101 IR Remote Controller can be used at the receiving end to realize the function of a wireless control of devices from another place.
Features
- Each RJ45 Output port will not interfere with other
- Low Power Consumption 5V USB power supply
- IR Transmission via Cat5/Cat6 avoid interference from signals of wireless devices without noise.
- The remote control signal high sensitivity, compatible exceptionally Strong
Technical Details
IR receive frequency range: 34 KHz to 60 KHz
IR transmit frequencies: 38 KHz & 56 KHz
IR receive range: 8 Meter
Emitter Range: 100mm–200mm
Power: 5VDC, 50mA MAX.
IR Receiver: 31(L) × 17(W) × 13(H) mm
IR Emitters: 13(L) × 8(W) × 5.5(H) mm
Connecting Block: 90(L) × 55(W) × 26(H) mm
IR Receiver: 1.5 Meter
IR Emitters: 1 Meter
USB cable: 1 Meter
IR Emitters: 3.5mm mono plug
Network cable: RJ45
Power supply: USB B type
Receiver Block: 0.070Kg
IR Emitters: 0.020Kg
Connecting Block: 0.165Kg
**Kit Include Receiver for Just 1 TV, you can add up to 4. Extra receivers can be bought additionally
| Manufacturer | JYC |
|---|
