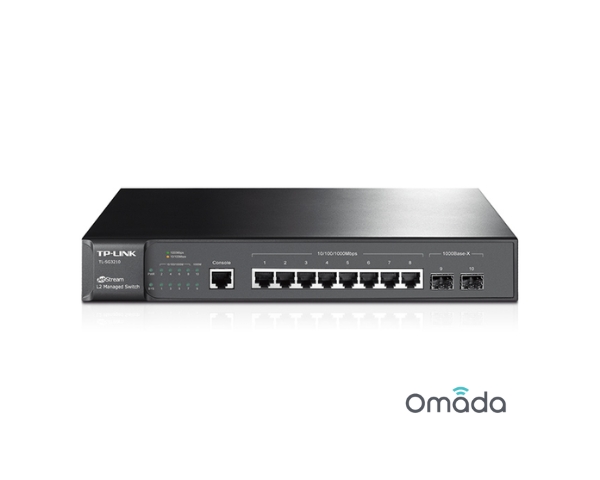

Omada 8-Port Gigabit L2 Managed with 2 SFP TL-SG3210
- 8x 10/100/1000 Mbps RJ45 Ports
- 2x Gigabit SFP Ports
- 20 Gbps Switching Capacity
- Fanless Design
- Rack Mount/Desktop
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The TP-Link Omada TL-SG3210 is an 8-port Gigabit L2 Managed Switch with 2 Gigabit SFP uplinks, offering advanced VLAN, QoS, LACP, ACL, and IPv6 support. Its fanless design ensures silent operation, making it ideal for business networks, CCTV systems, and enterprise deployments.
Technical Details
- Ports: 8 × Gigabit RJ45 Ports
- SFP Ports: 2 × Gigabit SFP Slots
- Console Port: 1 × Console Port
- Switching Capacity: 20 Gbps
- Packet Forwarding Rate: 14.9 Mpps
- MAC Address Table: 8K Entries
- Packet Buffer: 4 Mb
- Jumbo Frame: 10 KB
- VLAN Support: Up to 4,000 VLANs
- Link Aggregation: LACP (802.3ad)
- Spanning Tree: STP / RSTP / MSTP
- QoS: 802.1p, DSCP, Voice VLAN
- IPv6 Support: Yes
- Management: Web GUI, CLI, SNMP v1/v2c/v3
- Security: 802.1X, ACL, SSH, SSL/TLS, DAI, IP-MAC-Port Binding
- Cooling: Fanless
- Power Consumption: Max. 10.7W
- Dimensions: 294 × 200 × 44 mm
- Mounting: Rackmount / Desktop
Technical Details
- Model: TL-SG3210
- Ports: 8 × 10/100/1000 Mbps RJ45
- SFP Slots: 2 × 1000 Mbps SFP
- Console Port: 1 × Console Port
- Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p
- Switching Capacity: 20 Gbps
- Packet Forwarding Rate: 14.9 Mpps
- MAC Address Table: 8K Entries
- Packet Buffer Memory: 4 Mb
- Jumbo Frame: 10,240 Bytes
- VLAN Capacity: Up to 4,000 VLANs
- VLAN Types: Port-Based, MAC-Based, Protocol-Based
- Link Aggregation: Up to 8 LACP Groups
- QoS: 4 Priority Queues, SP, WRR, SP+WRR
- Flow Control: IEEE 802.3x
- IGMP Snooping: V1/V2/V3
- Authentication: IEEE 802.1X, RADIUS, Guest VLAN
- ACL: Layer 2 – Layer 4 Filtering
- Security Features:
- IP-MAC-Port-VID Binding
- Dynamic ARP Inspection (DAI)
- DoS Protection
- Storm Control
- Port Security
- IPv6 Features:
- Dual IPv4/IPv6 Stack
- MLD Snooping
- IPv6 SSH
- IPv6 SSL
- DHCPv6 Client
- Management:
- Web Interface
- CLI
- SNMP v1/v2c/v3
- RMON
- Port Mirroring
- Syslog
- SNTP
- Power Supply: 100–240V AC, 50/60Hz
- Maximum Power Consumption: 10.7W
- Cooling: Fanless
- Dimensions: 294 × 200 × 44 mm
- Installation: Rackmount / Desktop
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10%–90% Non-Condensing
- Storage Humidity: 5%–90% Non-Condensing
| Manufacturer | Omada TP-Link |
|---|---|
| Switch Type | Cloud Managed |
| Device Total Ports | 10 |
| Mount Type | Desktop |
| No of SFP Ports | 2 |
| SFP Ports | With SFP Ports |
| POE Switch | No |
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad, IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q, IEEE 802.1x,IEEE 802.1p |
| Interface | 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 1000Mbps SFP Slots 1 Console Port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | Fanless |
| Power Supply | 100～240VAC, 50/60Hz |
| Power Consumption | Maximum: 10.7W (220V/50Hz) |
| Dimensions ( W x D x H ) | 11.6*7.9*1.7in. (294*200*44 mm) |
| PERFORMANCE | |
|---|---|
| Bandwidth/Backplane | 20Gbps |
| Packet Forwarding Rate | 14.9Mpps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4Mb |
| Jumbo Frame | 10240 Bytes |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
| L2 Features | IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP Port isolation BPDU filtering/guard TC/Root protect Loop back detection 802.3x Flow Control |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/ MAC/Protocol-based VLAN GARP/GVRP Management VLAN configuration |
| Access Control List | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID; Time Range Based |
| Security | IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control |
| IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
| IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Switch; Power Cord; Quick Installation Guide;Resource CD; Rackmount Kit; Rubber Feet |
| System Requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
