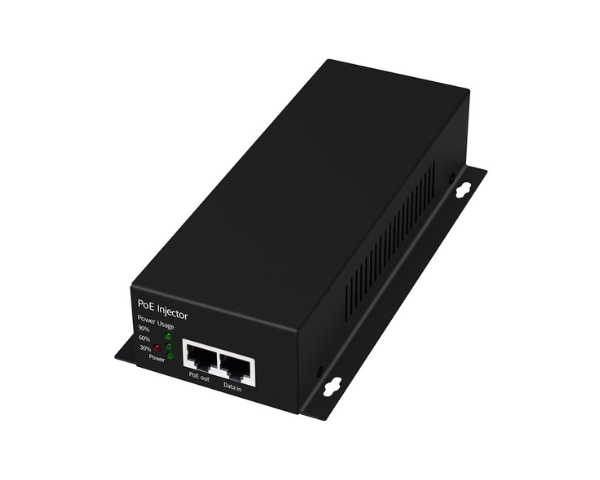

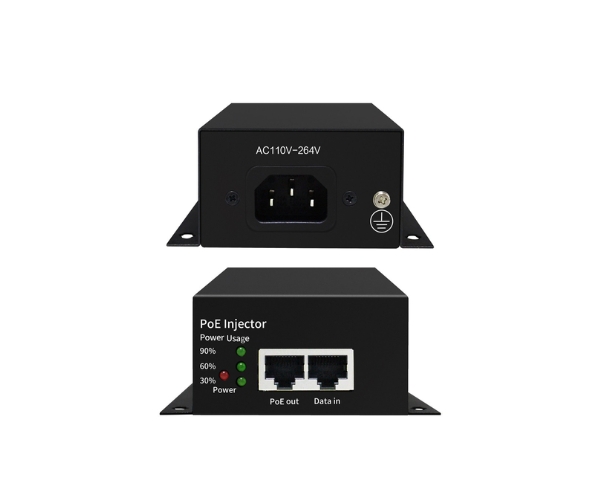

The RS SST-BTG-90W is a high-power Gigabit PoE Injector designed for demanding PoE applications requiring up to 90W output. Supporting IEEE 802.3af/at/bt standards, it delivers reliable power and Gigabit data connectivity over a single Ethernet cable. Featuring industrial-grade protection, power usage monitoring LEDs, surge protection, and a robust metal enclosure, it is ideal for PTZ cameras, Wi-Fi 6/7 access points, digital signage, mini PCs, and other high-power PoE devices.
Technical Details
- Model: SST-BTG-90
- Brand: RS

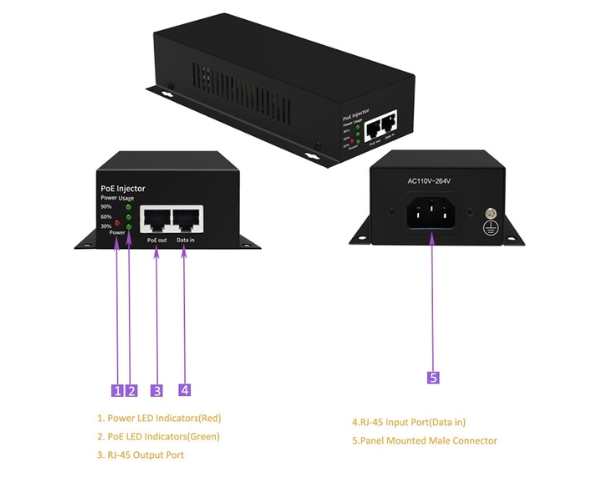

- Interfaces: 1 × Gigabit RJ45 PoE Output Port, 1 × Gigabit RJ45 Data Input Port
- PoE Standards: IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE 802.3bt (90W)
- PoE Power:
- Maximum PoE Output: 90W
- PoE Output Voltage: 52V DC
- Output Current: 1.85A
- PoE Pin Assignment: 1/2-, 3/6+ or 4/5+, 7/8-
- Network Performance:
- 10/100/1000Mbps Gigabit Ethernet
- 10BASE-T: Cat5 UTP up to 250m
- 100BASE-TX: Cat5e and above up to 100m
- 1000BASE-T: Cat5e and above up to 100m
- LED Indicators: Power Status Indicator, PoE Usage Indicators: 30%, 60%, 90%
- Protection Features: ESD Protection: Contact 8KV, Air 15KV, Surge Protection: Common Mode 6KV, Differential Mode 1KV, EFT Protection, Industrial-Grade Design
- Power Input: AC 110–264V, 50/60Hz Frequency
- Applications: PTZ Cameras, IP Cameras, Wi-Fi Access Points, Digital Signage Systems, Mini PCs & Embedded Systems, Industrial Networks
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5%–95% RH
- Physical Features:
- Metal Housing
- IP20 Protection Rating
- Wall-Mount Installation
- Dimensions: 187 × 95 × 40 mm
- Certifications: CE, FCC, CCC, RoHS
- Reliability: Service Life: 100,000 Hours
| Manufacturer | RS |
|---|---|
| Speed | Gigabit |
| Power over Ethernet (PoE) | PoE |
