RS 5-Port Gigabit POE Extender 1 IN, 4 Out SST-BT14G
- POE in: 90W
- POE out: Port 2 ( 60W), Port 3-5 (30W)
- Support: 10/100/1000 Mbps IEEE802.3af/at
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

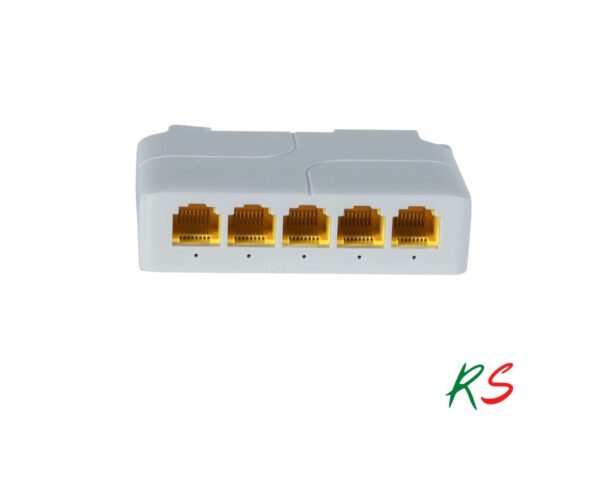

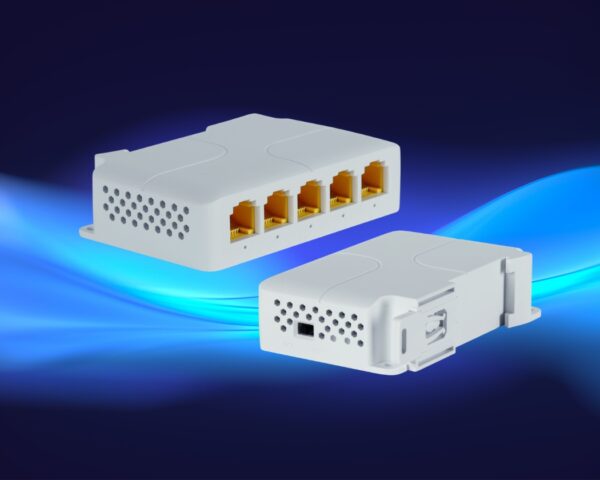

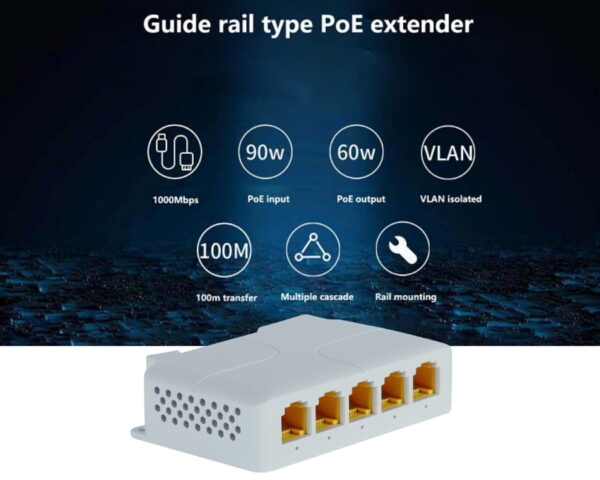

The RS SST-BT14G is a high-power Gigabit PoE Extender that expands a single PoE connection into four PoE output ports while maintaining full Gigabit network speeds. Supporting IEEE 802.3af/at/bt standards, it delivers up to 90W total PoE power, including a dedicated 60W output port for high-power devices such as PTZ cameras. With support for transmission distances up to 250 meters in VLAN mode, it is ideal for IP surveillance, wireless access points, VoIP systems, and network expansion projects.
Technical Details
- Model: SST-BT14G
- Brand: RS
- Interfaces:
- 1 × 10/100/1000Mbps RJ45 PoE Input Port
- 4 × 10/100/1000Mbps RJ45 PoE Output Ports
- PoE Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- PoE Power:
- Total PoE Budget: 90W
- Port 2 Output: Up to 60W
- Ports 3–5 Output: Up to 30W per Port
- Input Voltage: DC 44–57V
- Output Voltage: DC 44–57V
- Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Network Performance:
- Gigabit Ethernet Support (10/100/1000Mbps)
- Store-and-Forward Switching
- 10Gbps Switching Capacity
- 1K MAC Address Table
- Forwarding Rate: 10BASE-T: 14,880pps per Port, 100BASE-TX: 148,800pps per Port
- Transmission Distance: Up to 250m in VLAN Extension Mode
- PoE Wiring: PoE Input: 1/2+, 3/6-, 4/5+, 7/8-, PoE Output: 1/2+, 3/6-
- Features:
- Power Priority Mechanism
- Auto MAC Learning & Aging
- IEEE 802.3x Flow Control
- Full-Duplex & Half-Duplex Support
- Applications: IP Cameras, PTZ Cameras, Wireless Access Points, VoIP Phones, Computer Networks
- Operating Temperature: -10°C to 55°C
- Dimensions: 85 × 58 × 23 mm (L × W × H)
| Manufacturer | RS |
|---|---|
| Speed | Gigabit |
| Device Total Ports | 5 |
| POE Ports | 4 |
| Power over Ethernet (PoE) | PoE |
