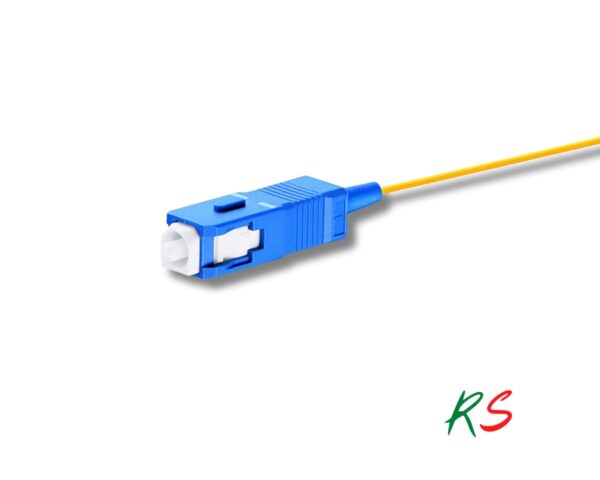

RS460220 – SC/UPC Single Mode Fiber Optic Pigtail 0.9mm G657A1, 1m (LSZH, Yellow)
The RS460220 is a high-quality SC/UPC single-mode fiber optic pigtail with 0.9mm tight buffer and G.657A1 fiber, designed for low-loss splicing in FTTx, data center and telecom applications.
Key Highlights
- SC/UPC connector with low insertion loss & high return loss
- Single Mode OS2 G.657A1 bend-insensitive fiber
- 0.9mm tight buffer for easy splicing and handling
- Factory-polished connector for consistent performance
- Ideal for splice trays, ODFs and fiber enclosures
Technical Data
| Product type | Fiber Optic Pigtail |
| Part Number | RS460222 |
| Connector | SC / UPC |
| Fiber Mode | Single Mode (OS2) |
| Fiber Standard | ITU-T G.657A1 (bend-insensitive) |
| Cable Diameter | 0.9 mm (tight buffer) |
| Jacket Material | LSZH |
| Jacket Color | Yellow |
| Length | 1 m |
| Ferrule Material | Zirconia Ceramic |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB (UPC) |
| Operating Temperature | -40°C to +85°C |
| Buffer Colors | Green & Red |
| Fiber Cable Connector | SC/UPC |
|---|---|
| Fiber Count | 1 |
| Fiber Mode | Single Mode |
| Length | 1.00m |
| Manufacturer | RS |
