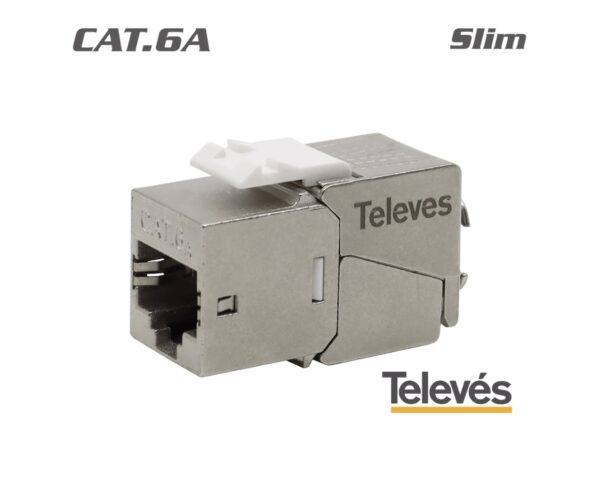

The TELEVES 209929 Keystone Jack RJ45 FTP Cat.6A Female 180° Tool-Free Grip Slim, is a special RJ45 female connector, grip type, with extra small FTP Cat 6A connector specifications for data cables.

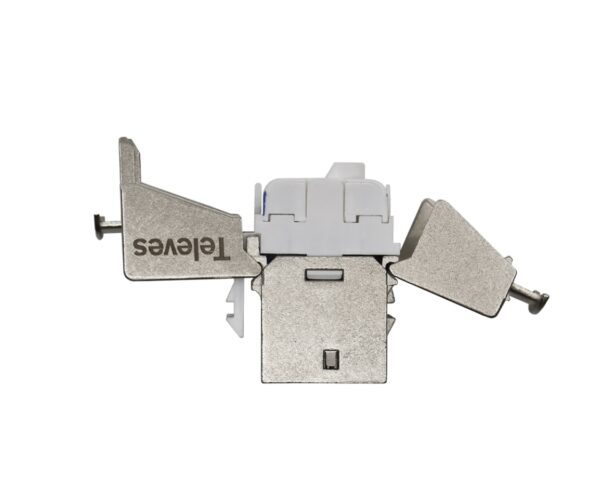

It is Keystone outlet compatible RJ45 FTP Cat 6A female connector, plus it is reusable and easy to connect without the need for tools. The connector incorporates 2 pieces that hook between them, providing the necessary grip to the cable and its construction is an extra small format, especially suitable for use in keystone outlets. Due to its technical characteristics, this connector is compatible with PoE/PoE+/PoE++ (Power over Ethernet) technology, allowing the cable to power network devices.

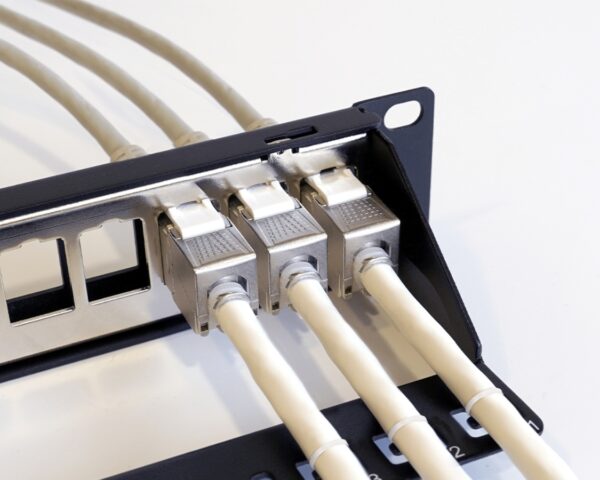

The front cable input provides and opening of 180°, to facilitate the connection, in addition to the connection table (A or B) on the connector , which has 50 microns gold-plated pins for excellent performance. This unit is Ideal for installation in rack panels, as it also comes in extra small size (Slim).
Technical features:
– Specification CAT 6Α, FTP , RJ45 female, Tool-Free installation
– PoE/PoE+/PoE++: Yes
– Shielding: FTP
– Rated voltage: 150 V, Rated current: 1.5 A (max.)
– Cable output: 180°
– Contact resistance: 20 mΩ max.
– Insulation resistance: 500 MΩ min.
– Resistance voltage: 1000 V RMS, 60 Hz, 1 min
– AWG 22 … 26 for Cat 6A, Cat 6, Cat 5e, Cat 5
– Housing material: Zinc alloy
– Color: Silver
– Dimensions: 35 (D) x 14,5 (W) x 22 (H) mm
Packaging:
– Per 10 pieces
| Manufacturer | TELEVES |
|---|---|
| LAN Category | Cat6a |
| LAN Type | FTP |
