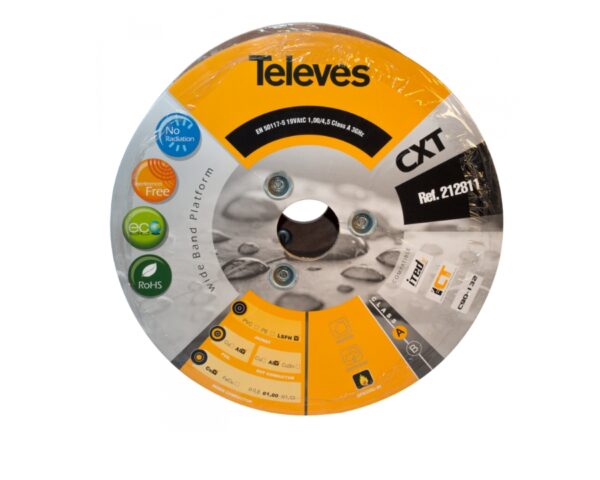

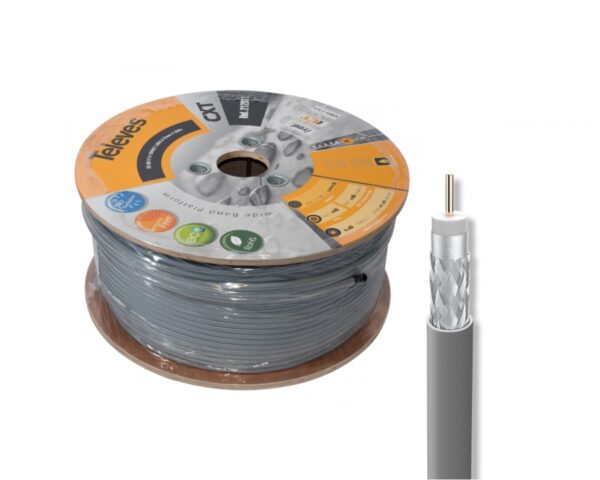

TELEVES 212811 LSFH Dca CU Coaxial Cable 250m

RG-6 coaxial cable with copper inner conductor and aluminium braid (Cu/Al), and an excellent braid coverage (79%). A 19 AtC cable with double shielded and LSFH (Low Smoke, Free of Halogen) sheath.

Highlights

• Copper inner conductor and aluminium braid
• Class A shielded
• Dca-s2,d2,a1 Euroclass
• Grey-colour external LSFH sheath, for indoor use, recommended for high-traffic environments
• 75 Ohm characteristic impedance
• 250 m wood reel
• Double-shielded Class A coaxial cable
• With 2 shielding layers, these cables provide an outstanding shielding thanks to a high-coverage braid.
• They belong in EN 50117 standard Class A, according to their structural properties:
  • For 5 MHz – 30 MHz => TI < 5 mΩ/m For 30 MHz – 1000 MHz => SA > 85 dB
  • For 1000 MHz – 2000 MHz => SA > 75 dB
  • For 2000 MHz – 3000 MHz => SA > 65 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Technical Details

• Model: CXT
• Cable type: RG-6
• Standard: EN 50117-9-2
• Euroclass: Dca
• Euroclass: Smoke Production s2
• Euroclass: Flaming droplets d2
• Euroclass: Acidity a1
• Class: A
• Inner conductor Diameter mm 1
• Inner conductor Material: Copper (Cu)
• Inner conductor Resistance Ohm/km < 23
• Dielectric Diameter mm 4.5
• Dielectric Material: Foam polyethylene (PEE)
• Dielectric Color: White RAL 9003
• Overlapped foil: Aluminium + Polyester
• Braid Material: Aluminium
• Braid dimensions: No. of carriers (Nc): 16
• Braid Dimensions: No. of strands per carrier (Ns): 8
• Braid Dimensions: strand diameter (Ø) mm 0.12
• Braid Resistance Ohm/km < 31
• Braid Coverage % 79
• 2nd foil: No
• 2nd foil glued to the dielectric: No
• Petrol-Jelly: No
• Anti-migrating film: No
• Outer sheath Diameter mm 6.5
• Outer sheath Material: LSFH
• Minimum bending radius mm 32.5
• Transfer impedance (5-30MHz) mΩ /m < 5 1GHz shielding dB > 85
• Spark Test Vac 3000
• Capacitance pF/m 54
• Impedance Ω 75
• Velocity ratio % 82
• Operating temperature °C -25 … 70

Attenuation

• Atenuacion 5MHz dB/m 0.01
• Atenuacion 47MHz dB/m 0.04
• Atenuacion 54MHz dB/m 0.05
• Atenuacion 90MHz dB/m 0.06
• Atenuacion 200MHz dB/m 0.09
• Atenuacion 500MHz dB/m 0.14
• Atenuacion 698MHz dB/m 0.17
• Atenuacion 800MHz dB/m 0.19
• Atenuacion 862MHz dB/m 0.19
• Atenuacion 950MHz dB/m 0.2
• Atenuacion 1000MHz dB/m 0.21
• Atenuacion 1220MHz dB/m 0.23
• Atenuacion 1350MHz dB/m 0.25
• Atenuacion 1750MHz dB/m 0.29
• Atenuacion 2050MHz dB/m 0.32
• Atenuacion 2150MHz dB/m 0.33
• Atenuacion 2200MHz dB/m 0.35
• Atenuacion 2300MHz dB/m 0.35
• Atenuacion 2400MHz dB/m 0.35
• Atenuacion 3000MHz dB/m 0.39
• Return losses 5MHz dB 20
• Return losses 47MHz dB 20
• Return losses 54MHz dB 20
• Return losses 90MHz dB 20
• Return losses 200MHz dB 20
• Return losses 500MHz dB 18
• Return losses 698MHz dB 18
• Return losses 800MHz dB 18
• Return losses 862MHz dB 18
• Return losses 950MHz dB 18
• Return losses 1000MHz dB 18
• Return losses 1220MHz dB 16
• Return losses 1350MHz dB 16
• Return losses 1750MHz dB 16
• Return losses 2050MHz dB 15
• Return losses 2150MHz dB 15
• Return losses 2200MHz dB 15
• Return losses 2300MHz dB 15
• Return losses 2400MHz dB 15
• Return losses 3000MHz dB 15

Physical data

• Net weight:40g
• Gross weight:40g
• Width:6mm
• Height:1,000mm
• Depth:6mm
• Main product weight:39g
• Reel250 m
