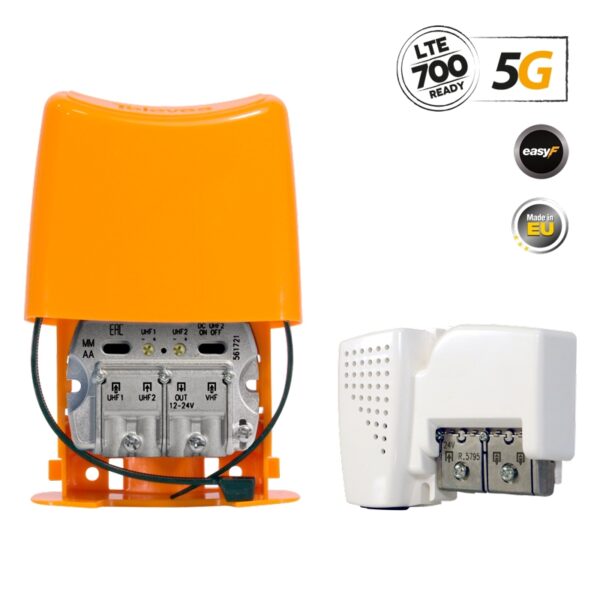

TELEVES 568010 NanoKom Kit: Mast Amplifier 5G LTE + PSU 24V, UHF/UHF/VHF (FM), consists of a mast amplifier for bands UHF (21…48), 2x UHF and VHF/FM inputs. The unit offers 5G interference cutoff. The pairing PSU with 2 outputs, features high efficiency switched-mode function. The SET is constructed from Zamak alloy for shielding and resistance to weather conditions, while it is also housed in polycarbonate plastic, featuring Ultra compact design. Comes with Easy-F connector type for fast and secure connection without plugs.
Technical features:
- 568010 MAST AMPLIFIER 5G 2x UHF (channels 21…48), VHF/FM
- Inputs: 2x UHF (MHZ 470…694), VHF/FM (MHZ 47…254), with 5G interference cutoff from channel UHF 49 upwards
- Improved efficiency in spectrum UHF 21…48 (ΜΗΖ 470…694)
- Integrated function for 5G cutoff
- With DC OUT on/off switch towards Televes TForce BOSS antennas, active dipoles, etc
- Gain db: UHF 28, VHF -1.5. In UHF, extra manual adjustment of 0…20 db
- Νoise Figure (N.F.): UHF 6.5db
- Output dbμν: 108
- Powering through coaxial cable with compatible PSU: 12…24ν
- Power consumption: 50 mA
5795 POWER SUPPLY with two outputs
- Frequency Margin: MHz 5-862
- Power supply: V 24
- Mains voltage 196-253 V 50/60 Hz
- Max. Output current mA 130
- Power consumption: 4.4 W
- Max. temp. operation: +45 C
- Protection level IP 20
- Dimensions: 90 x 68 x 28 millimeters
| Manufacturer | TELEVES |
|---|---|
| Frequency Range | 47-694 |
| Project Scenario | Mast Kit |
