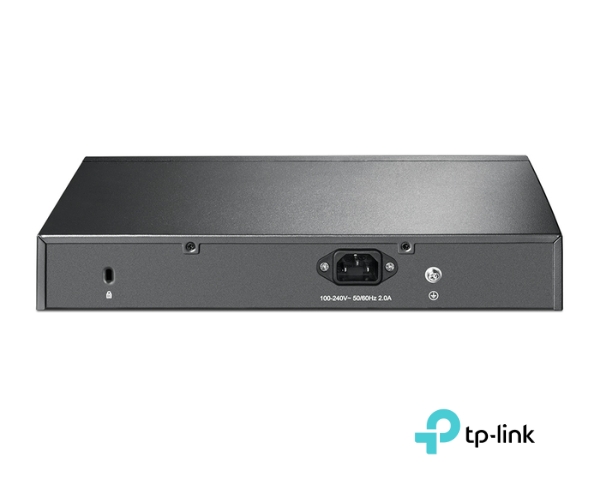

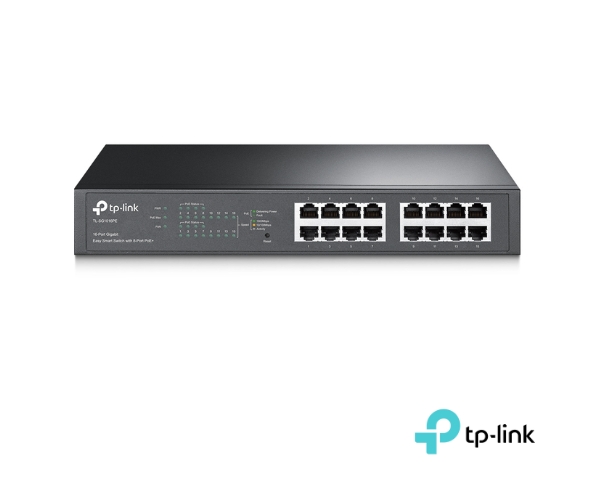

TP-Link 16Port Switch with 8 Port PoE+ TL-SG1016PE
- Gigabit
- 16 Port ( 8 POE+)
- Web based interface management
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The TP-Link TL-SG1016PE is a 16-Port Gigabit Easy Smart PoE+ Switch with 8 PoE+ ports and a 110W power budget. Featuring VLAN, QoS, Link Aggregation, PoE Auto Recovery and web-based management, it is an ideal solution for IP cameras, wireless access points and business networks.
Technical Features
- 16 Gigabit Ethernet Ports
- 8 PoE+ Ports
- 110W Total PoE Budget
- Up To 30W Per PoE Port
- Easy Smart Management
- Web-Based Configuration
- PoE Auto Recovery
- VLAN Support
- QoS Traffic Prioritization
- Link Aggregation
- IGMP Snooping
- Rackmount Design
Technical Details
- Standards and Protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1q, IEEE802.1p
- Interfaces: 16 × 10/100/1000Mbps RJ45 Ports
- Auto Negotiation: Yes
- Auto MDI/MDIX: Yes
- Network Media:
- 10BASE-T: UTP Category 3, 4, 5 Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 100BASE-TX: UTP Category 5, 5e Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 1000BASE-T: UTP Category 5, 5e, 6 Or Above Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- Fan Quantity: 1
- Physical Security Lock: Yes
- PoE Standard: IEEE802.3at
- PoE Ports: Ports 1-8
- Maximum PoE Output Per Port: 30W
- Total PoE Budget: 110W
- Dimensions: 294 × 180 × 44mm
- Mounting: 13″ and 19″ 1U Rack Mountable
- Maximum Power Consumption: 14.7W (No PD Load), 131.4W (With 110W PD Load)
- Maximum Heat Dissipation: 50.2 BTU/h (No PD Load), 448.4 BTU/h (With 110W PD Load)
- Switching Capacity: 32Gbps
- Packet Forwarding Rate: 23.8Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1Mb
- Jumbo Frame: 9KB
- Quality of Service:
- Port-Based Priority
- 802.1p Priority
- DSCP Priority
- 4 Priority Queues
- Rate Limit
- Storm Control
- L2 Features:
- IGMP Snooping V1/V2/V3
- Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN Features:
- Supports Up To 32 VLANs Simultaneously
- MTU VLAN
- Port VLAN
- Tag VLAN
- Management: Web-Based GUI, Easy Smart Configuration Utility
- PoE Auto Recovery
- Transmission Method: Store-And-Forward
- Certifications: FCC, RoHS
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90% Non-Condensing
- Storage Humidity: 5% ~ 90% Non-Condensing
Package Contents:
- TL-SG1016PE Switch
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
| Switch Type | Unmanaged |
|---|---|
| Speed | Gigabit |
| Mount Type | Desktop, Rack Mount |
| POE Budget | 110W |
| POE Ports | 8 |
| Power over Ethernet (PoE) | PoE+ |
| POE Switch | Yes |
| Manufacturer | TP-Link |
| Device Total Ports | 16 |
