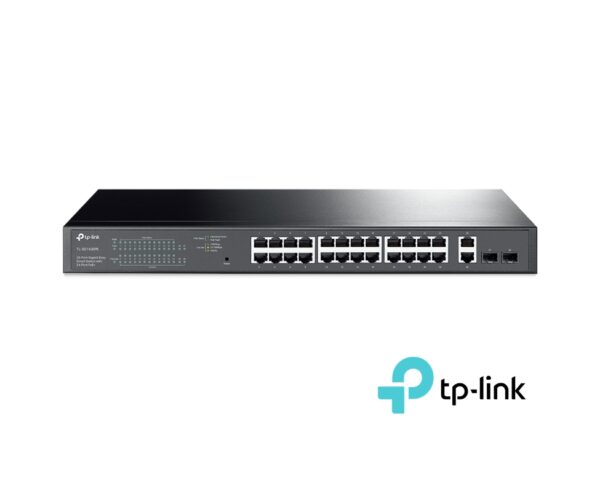

TP-Link 28-Port Gigabit Switch with 24-Port PoE+ TL-SG1428PE
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

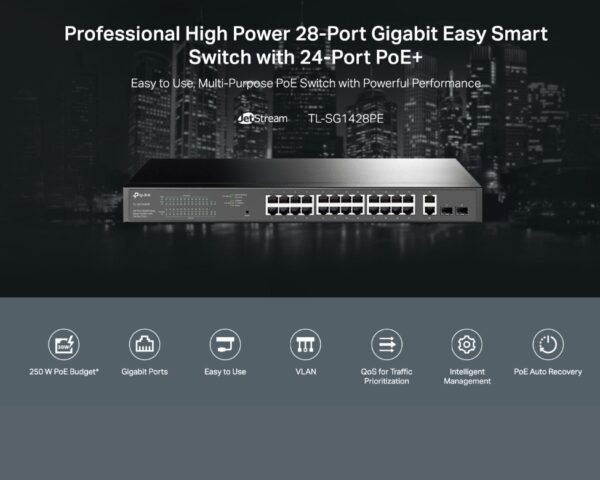

The TP-Link TL-SG1428PE is a 28-Port Easy Smart Gigabit PoE+ Switch featuring 24 PoE+ ports, 2 Gigabit uplink ports and 2 SFP uplinks. With a powerful 250W PoE budget, VLAN support, QoS prioritization and PoE Auto Recovery, it is ideal for CCTV systems, wireless networks and business environments.
Technical Features
- 24 Gigabit PoE+ Ports
- 2 Gigabit RJ45 Uplink Ports
- 2 Gigabit SFP Uplink Ports
- 250W Total PoE Budget
- Up To 30W Per PoE+ Port
- Easy Smart Management
- PoE Auto Recovery
- VLAN Support
- QoS Traffic Prioritization
- IGMP Snooping
- Link Aggregation
- Rackmount Design
Technical Details
- Standards and Protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1q, IEEE802.1p
- Interfaces: 26 × 10/100/1000Mbps RJ45 Ports
- SFP Ports: 2 × Gigabit SFP Ports
- Network Media:
- 10BASE-T: UTP Category 3, 4, 5 Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 100BASE-TX: UTP Category 5, 5e Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 1000BASE-T: UTP Category 5, 5e, 6 Or Above Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 1000BASE-X: MMF, SMF
- Fan Quantity: 2
- Physical Security Lock: Yes
- Power Supply: 100-240V AC, 50/60Hz
- PoE Standard: IEEE802.3af/at
- PoE+ Ports: 24
- PoE Budget: 250W
- Dimensions: 440 × 220 × 44mm
- Mounting: 19″ 1U Rack Mountable
- Maximum Power Consumption: 27W (No PD Connected), 304.7W (With 250W PD Load)
- Maximum Heat Dissipation: 92.1 BTU/h (No PD Connected), 1039.0 BTU/h (With 250W PD Load)
- Switching Capacity: 56Gbps
- Packet Forwarding Rate: 41.7Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1Mbit
- Jumbo Frame: 9KB
- Quality of Service:
- Port-Based Priority
- 802.1p Priority
- DSCP Priority
- 4 Priority Queues
- Rate Limit
- Storm Control
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- PoE Auto Recovery
- VLAN Features:
- Supports Up To 32 VLANs Simultaneously
- MTU VLAN
- Port VLAN
- Tag VLAN
- Management Features:
- Web-Based GUI
- Easy Smart Configuration Utility
- Transmission Method: Store-And-Forward
- Certifications: CE, FCC, RoHS
- Operating Temperature: 0°C ~ 50°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90% Non-Condensing
- Storage Humidity: 5% ~ 90% Non-Condensing
Package Contents:
- TL-SG1428PE Switch
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
| Manufacturer | TP-Link |
|---|---|
| Switch Type | Unmanaged |
| No of SFP Ports | 2 |
| Mount Type | Rack Mount |
| Speed | Gigabit |
| POE Budget | 250W |
| POE Ports | 24 |
| Power over Ethernet (PoE) | PoE+ |
| POE Switch | Yes |
| SFP Ports | With SFP Ports |
| Device Total Ports | 28 |
