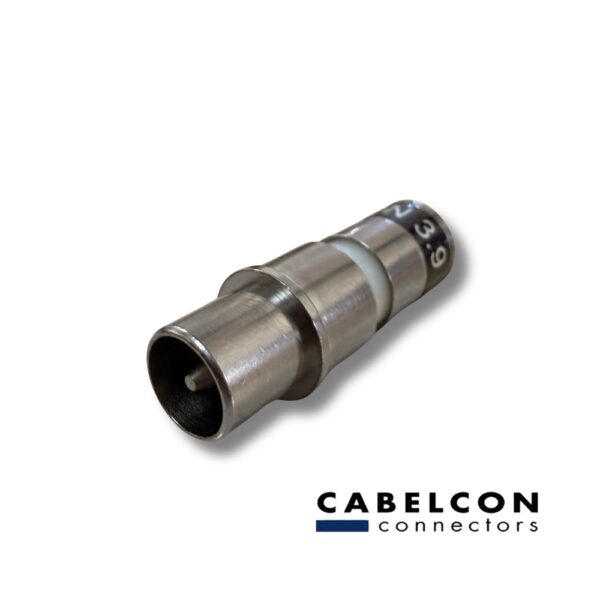

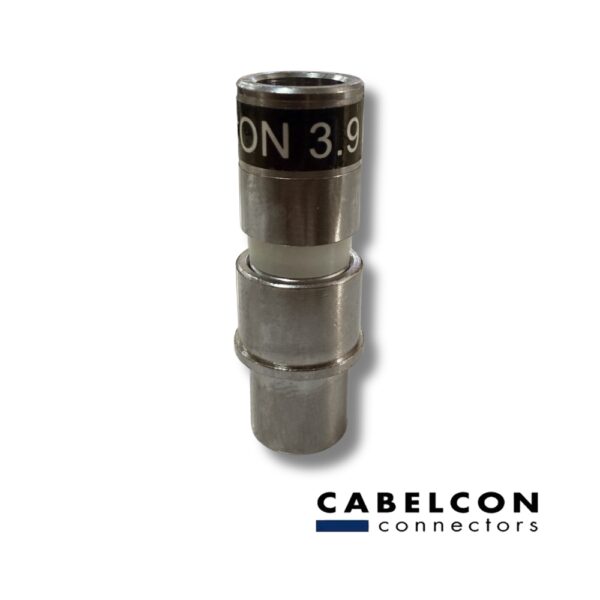

Cabelcon IEC compression connector IECM-59-CX3 3.9 male
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Pressure IEC connector – male for dielectric 3.9 mm
Technical Features:
- Corning Cabelcon IECM-56-CX3 pressure connectors were developed for digital multimedia applications and meet SCTE and IEC standards
- CX3-IEC connectors have a very low transfer impedance – less than 0.2 mOhm/connector in the return channel bandwidth (5 – 30 MHz). This is a very important factor for isolation efficiency in return channel applications
- One-piece connector design with a freely rotating 11 (7/16″) hex key nut allows for easy and reliable installation
- The type designation and cut-out dimensions are marked on the connector body for clear identification and on-site measurement.
- All standard compression tools can be used. The cut-out dimensions are standard for compression assembly preparation 6.5 mm / 6.5 mm (1/4″ / 1/4″)
- No additional sealing required. O-ring at the front ensures a waterproof connection according to IPX8* standard
Technical Details:
- Characteristic impedance: 75 Ohm
- Frequency range: up to 3 GHz
- Transmitted impedance: less than 0.2 mOhm/connector (5-30 MHz)
- Shielding efficiency: better than cable specification
- Tensile strength: better than cable specification
- Operating temperature: –40° to +85° C
- Water resistance: Passed IPX8 test: *immersed in water at a depth of 30m for 8 hours
- Surface treatment: NITIN-6™ (NiSn)
| Manufacturer | Cabelcon |
|---|
