EDISION OCX-25 Outdoor Coaxial Cable 25m
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

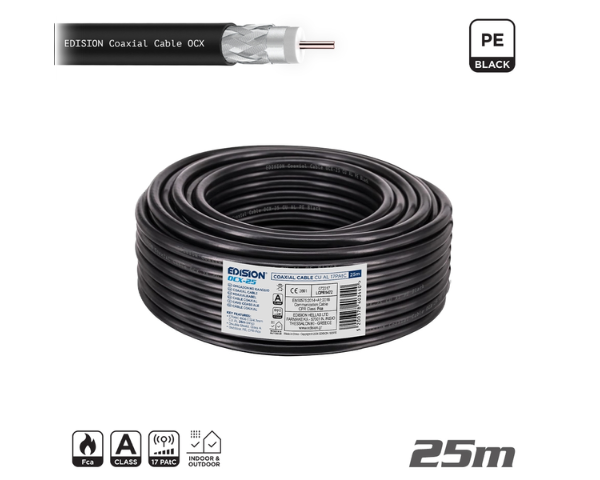

EDISION Outdoor coaxial cable 25m OCX-25 CU AL Fca PE Black 25m. Outdoor and Indoor RG6 coaxial cable, in a 25meter coil, for Digital Terrestrial, Cable and Satellite TV signal distribution. Also suitable for CCTV camera signal. It has double shielding, reinforced inner conductor, Class A, with excellent specifications for its class. Compatible with all 7mm TV and F plugs.
Technical features:
- Type: Coaxial Cable RG-6, double shielded, 17PAtC Outdoor and Indoor OCX-25
- Suitable for Terrestrial, Cable TV, Satellite reception and CCTV installations
- Class A
- CPR Class: Fca
- Standards: EN 55075
- Inner Conductor: Diameter 1,13 ± 0,05 mm / Material: Copper (CU)
- Foam Dielectric: Diameter 4,7 mm / Material: Polyethylene foam (FPE)
- Foil: Aluminum (AL) with coverage 100%
- Braid: Aluminum mesh (AL) 16x8x0,12 mm with coverage 77%
- Jacket: Diameter 6,6mm ± 0.10 mm / Material: PE black
- Impedance: 75 Ohm
- Minimum Bending Radius: 35mm
- Shielding: >85 dB (typ.130dB)
- Return Losses 5-862 MHz: >22 dB / 862-2150 MHz: >20 dB
Attenuation dB per 1 meter:
- 5 MHz / 0,02 dB
- 30 MHz / 0,03 dB
- 50 MHz / 0,04 dB
- 200 MHz / 0,07 dB
- 400 MHz / 0,11 dB
- 500 MHz / 0,12 dB
- 800 MHz / 0,16 dB
- 860 MHz / 0,17 dB
- 1000 MHz / 0,18 dB
- 1350 MHz / 0,21 dB
- 1750 MHz / 0,25 dB
- 2050 MHz / 0,27 dB
- 2150 MHz / 0,28 dB
General
- Environmental Operating Temperature: -40°C … +80°C
- Application: Outdoor and Indoor
- Length: 25m (marked per 1 meter)
- Weight: 0,85 kg
- Color: Black
- Packing: Ring 25m
- Packing Quantity: 8 pcs x 25m
| Weight | 0.84 kg |
|---|---|
| Manufacturer | EDISION |
| Length | 25.00m |
