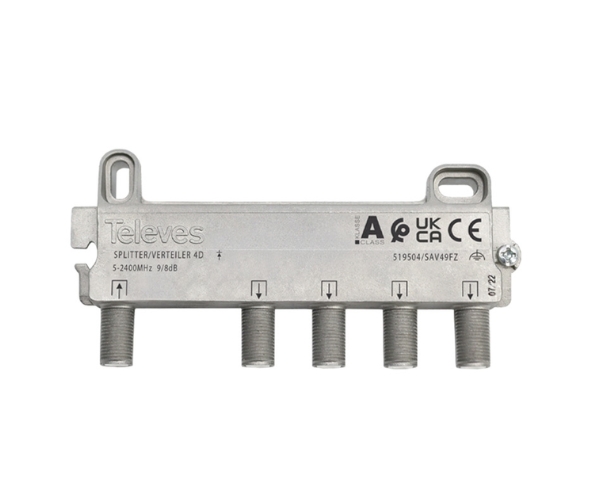

Televes 519504 4way splitter ‘F’ 5-2400 MHz with DC pass from OUT to ΙΝ, with F connectors located on the same side. It features low through losses thanks to the electronic micro-components, which improves its electrical performance.
In addition,Televes 519504 4way splitter its Zamak chassis provides great electromagnetical shielding (class A). It is designed for indoor installation, for wall, rack plate etc.
Special Features:
- Class A shielding. Zamak alloy construction for electromagnetic shielding and anti-corrosion protection.

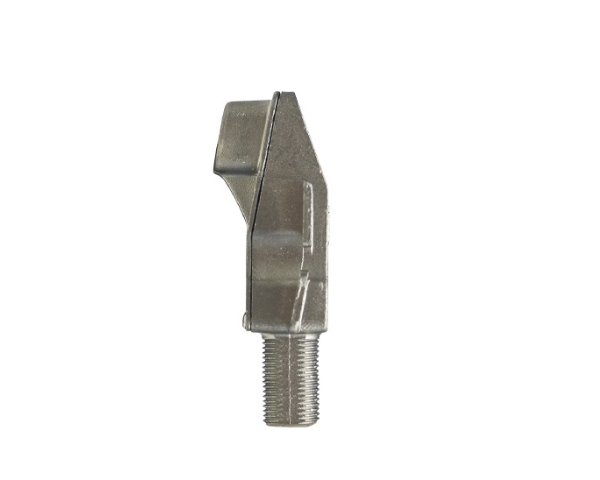

- Comfortable screwing of the cable, thanks to a 10° inclination angle of the F-connectors from the installation wall.
- Allows cabling passage through its rear part.

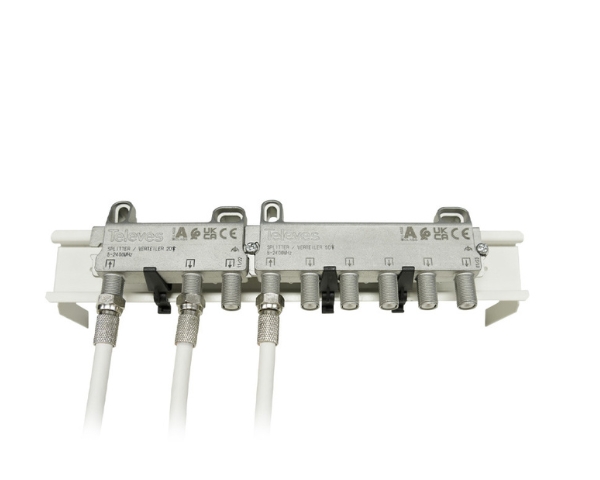

- F-Series elements can be chained between them with the ground screw, requiring in this case a single grounding cable
- Signal level is maintained in outlets, even with long cable deployment, thanks to a better flatness response
Technical Features
- – Frequency range MHz: 5 … 2400
- – Number of outputs: 4
- – Inputs/Bands: TERR & SAT
- – Through losses: dB 9 (Terr) & 8 (Sat)
- – Rejection between outputs dB >20 (Terr), >20 (Sat)
- – DC pass Out-to-In, with maximum Vdc 24 / mA 350
- – Dimensions W / H / D : 109 / 59 / 18 mm
| Weight | 0.089 kg |
|---|---|
| RF Splitter type | F all band DC Pass |
| Output ports | 4 |
| Manufacturer | TELEVES |
