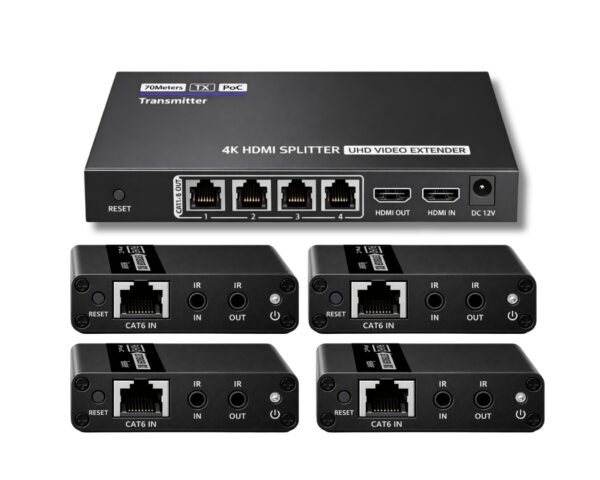

1×4 HDMI Splitter with Extender POC 4K@30Hz LKV724P
This product is a 1 input 4 outputs splitter extender kit, It distributes 1 HDMI™ input signal to 4 identical signal outputs, extends these signals up to 70 meters. support 4K30Hz resolution, bi-directional IR passthrough, RS-232 control and 3.5mm L/R audio output functions.
It is suitable for outdoor advertising, studios, multimedia classrooms, etc.
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
LKV724P 1×4 HDMI Splitter with Extender is a 1 input 4 outputs splitter extender kit, It distributes 1 HDMI™ input signal to 4 identical signal outputs, extends these signals up to 70 meters. support 4K30Hz resolution, bi-directional IR passthrough,RS-232 control and 3.5mm L/R audio output functions.It is suitable for outdoor advertising, studios, multimedia classrooms, etc.

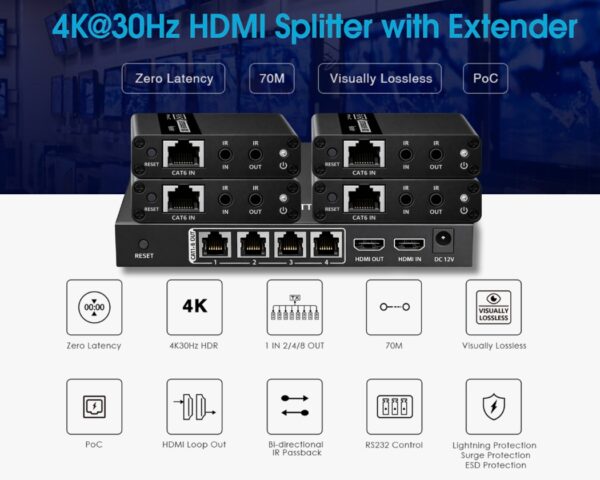

Key Features:
- Zero Latency
- 4K@30Hz HDR
- 1 IN/4 OUT
- 70M
- VISUALLY LOSSLESS
- PoC
- HDMI Loop Out
- Bi-Directional IR Pass Back
- RS232 Control
- Lightning/Surge/ESD Protection
Highlights:

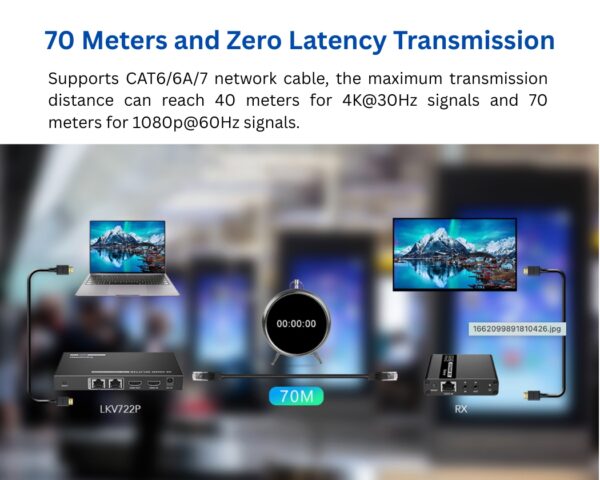

- 70 Meters and Zero Latency Transmission – Supports CAT6/6A/7 network cable, the maximum transmission distance can reach 40 meters for 4K@30Hz signals and 70 meters for 1080p@60Hz signals.
- 4K@30Hz HDR for Visually Lossless Transmission – Support 4K@30Hz HDR, the image can be more clear, higher saturation and show more outstanding details.

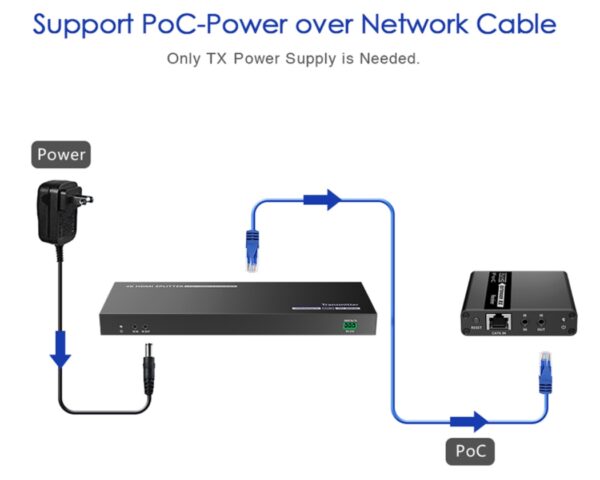

- Support PoC – Power over Network Cable Only TX Power Supply is Needed.

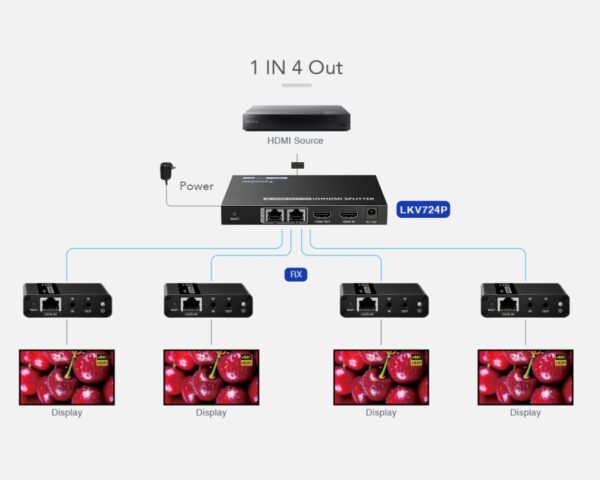

- Distribute 1 HDMI source to 4 displays over network cables simultaneously.
Technical Details
- Compatibility: HDMI 1.4，HDCP1.4
- Resolutions: 800×600、1024×768、1280×720、1280×960、 1366×768、 1440×900、1680×1050、1920×1080、 480i@60Hz、 480p@60Hz、576i@50Hz、 576p@50Hz、720p@50/60Hz、1080i@50/60Hz、 1080p@24/25/30/50/60Hz、4K@24/25/30Hz
- Audio Formats: PCM、LPCM、DTS-HD、DTS-Audio
- Transmission distance: CAT6/6A/7 , 1080p@60Hz≤70 meters , 4K@30Hz≤40 meters
- IR Passback: Bi-directional IR passback (20-60khz)
- RS-232: GND-RxD-TxD，follows RS-232 levels , Default baud rate：9600
- Working temperature: -20~60℃
- Storage temperature: -30~70℃
- Humidity: 0~90% RH
- Protection
- ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection
- Surge protection
- Power Supply: TX: DC12V/1A , RX: DC5V/1A
- Power Consumption: TX＜10W RX＜2.5W
- Housing: Iron
- Color: Black
- Weight: TX: 280g , RX: 160g x2
- Dimensions: TX: 151.5(L) x 86.5(W) x 19.0(H)mm, RX: 75.0(L) x 80.0(W) x 18.0(H)mm
- Mode: 1 in 4 out
| HDD type | HDMI Splitter with Extender |
|---|---|
| HDD Set-type | Set (Rx + Tx) |
| HDD HDMI Loop | Yes |
| HDD Maximum Distance | 70m |
| HDD Maximum Resolution | 4K@30Hz |
| HDD RX Power Type | 5V PLUG, POC |
| HDD Support IR | Yes |
| Manufacturer | Lenkeng |
